HMIs for Interface Development

Jan. 1, 2006

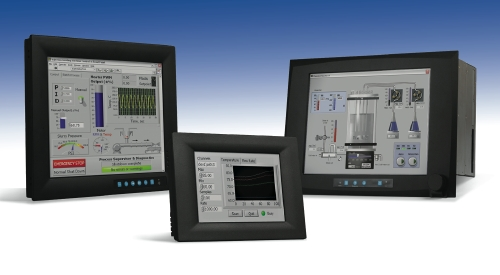

Engineers and scientists can use the vendor’s new flat-panel touchscreen, touch-panel computer and panel PC human machine interfaces with the LabView graphical development environment to develop user interfaces.

LabView offers a rich user interface development environment with royalty-free deployment for the interfaces with LabView Application Builder, and each touch-panel interface includes a LabView PDA Module deployment license. LabView can also target a wide range of distributed programmable automation controller products. The FPT-1015 is an industrial 15-inch flat-panel touch screen that offers a color LCD with resistive touch screen, and connects through a standard VGA port and USB. The TPC-2006 industrial touch-panel computer for embedded or machine control applications delivers a 5.7-inch LCD monitor with resistive touch screen. It runs Windows CE .Net operating system and features low power consumption and a 266Mhz Intel ARM9 processor. The PPC-2015 is a 15-inch color panel PC with resistive touch screen and a 2GHz Pentium 4 processor. The panel PC runs the Windows XP operating system with a 40GB hard drive.
