New Universal Transmitter Delivers Several Analytical Measurements Simply and Economically

July 31, 2013
Process and plant engineers in search of a powerful process analyzer for multiple analytical measurements will find the breakthrough Model T80 Universal Transmitter from Electro-Chemical Devices, Inc. provides a versatile, easy-to-use, economical solution for virtually all liquid analytical measurements.

Process and plant engineers in search of a powerful process analyzer for multiple analytical measurements will find the breakthrough Model T80 Universal Transmitter from Electro-Chemical Devices, Inc. provides a versatile, easy-to-use, economical solution for virtually all liquid analytical measurements.

Featuring a highly intelligent digital transmitter protocol, the T80 Universal Transmitter simplifies process measurement and reduces maintenance costs for seven common industrial plant parameters.   Process measurement has never been easier or more affordable than with the T80’s virtually plug-and-play capabilities, which simplify daily operations and maintenance while reducing instrumentation costs simultaneously.

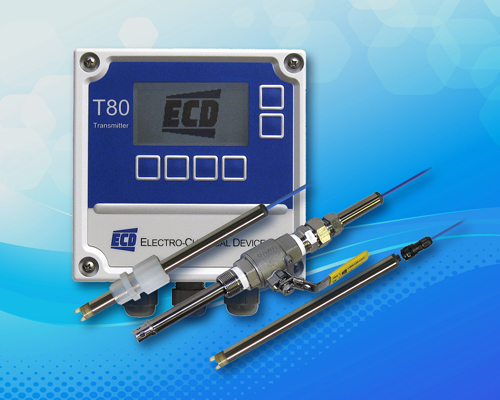

The ECD Model T80 Universal Transmitter is a single channel transmitter designed for the continuous measurement of multiple parameters in a general-purpose industrial environment: pH, ORP, pION, Dissolved Oxygen, Turbidity, Conductivity or Resistivity. The Model T80 digitally communicates with any ECD Model S80 Intelligent Sensor and automatically configures the transmitter’s menus and display screens to the measured parameter. The Model T80 automatically configures to any of the listed measurements so that there is no longer any need to inventory multiple instrument types, saving time and reducing plant operating costs.


The T80 Universal Transmitter is flexible and user-friendly. It offers membrane switch navigation, a simple menu structure and soft key menu choices and an easy-to-read 2 ¾ -x- 1 ½ inch LCD display. The T80 accepts any S80 intelligent sensor or any standard pH, ORP or pION sensor with solution ground using the optional T80 input card. It is available with 4-20 mA output with MODBUS RTU on 24 VDC and 110/220 VAC instruments. The T80 can be configured with optional HART® 7 communication and an optional three alarm relay.

The Model T80 transmitter digitally communicates with any Model S80 Intelligent Sensor, automatically uploading the sensor’s calibration data and configuring the transmitter's menus and display screens to the parameter. Versatile Model S80 Sensors are the intelligent sensor choice for a wide variety of applications, available in the following parameters: pH, ORP, Specific Ion, Dissolved Oxygen, Conductivity & Resistivity. S80 Sensors feature two universal sensor designs, Insertion/Submersion or Valve Retractable with flared end to prevent blow out. The standard Model S80 sensors have a rugged ¾-inch O.D. 316 stainless steel body with a 10-foot cable or an optional waterproof detachable cable assembly.

S80 Sensors feature the ECD six-point advantage making them adaptable to most industrial applications. The S80 intelligent sensors store calibration data and have a common configuration for all measurements. They are economic with easily replaceable, application specific electrode cartridges, in submersible and retractable designs with application specific materials of construction, to bring cutting edge versatility to ECD’s customers.

>>For more information on this product, click here
