With the FRC-EP series, which consists of the FRC-EP170 and the FRC-EP190, IXXAT offers universally usable hardware platforms for applications on the test bench or in the vehicle, attractive for their high performance, favorable prices, broad range of applications, and support for a wide variety of software solutions.
These devices have FlexRay, CAN, CAN FD, LIN, K-Line, USB, Ethernet, EtherCAT, Bluetooth, and RS232 interfaces, along with analog and digital I/O. Expansion slots make it simple to add other interfaces, including WLAN, GSM, or GPS. This makes the devices scalable, adaptable to specific applications, and ready for the future.
With the new FRC-EP170, IXXAT has now introduced a very compact, cost-effective variant of the familiar FRC-EP190. Both devices have the same processor and the same operating system, making the new variant completely software-compatible and just as powerful.
Thanks to the large number of identical interfaces and its galvanic isolation, extended scalability, and especially its optional EtherCAT slave functionality, the primary target application of the FRC-EP190 is integration with test benches in the automotive communications world.

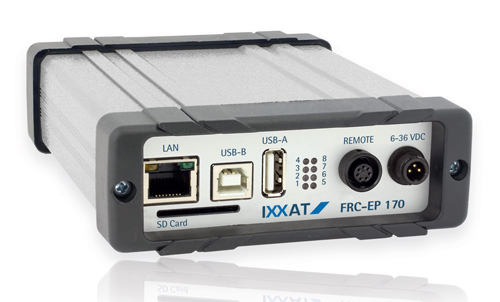

The handy FRC-EP170 was developed for use in vehicles. Its main application areas are gateway solutions for connection to different ECU integration levels, prototype controllers, expansion of data loggers with additional interfaces, and wireless signal display using off-the-shelf mobile phones or tablet PCs.
Demanding Restbus simulation and gateway solutions can be implemented quickly and easily based on either device, using the corresponding software packages from IXXAT. There are also extensive development packages available for the development of specific solutions. Custom functions and applications can be implemented quickly and easily by customers in-house thanks to the use of the Linux operating system and the availability of a free Software Development Kit.
