New UBIFAST Programming Tool

POSITAL is introducing powerful new programming capabilities and tools for their IXARC series of rotary encoders.

This content was submitted directly to this website by the supplier.

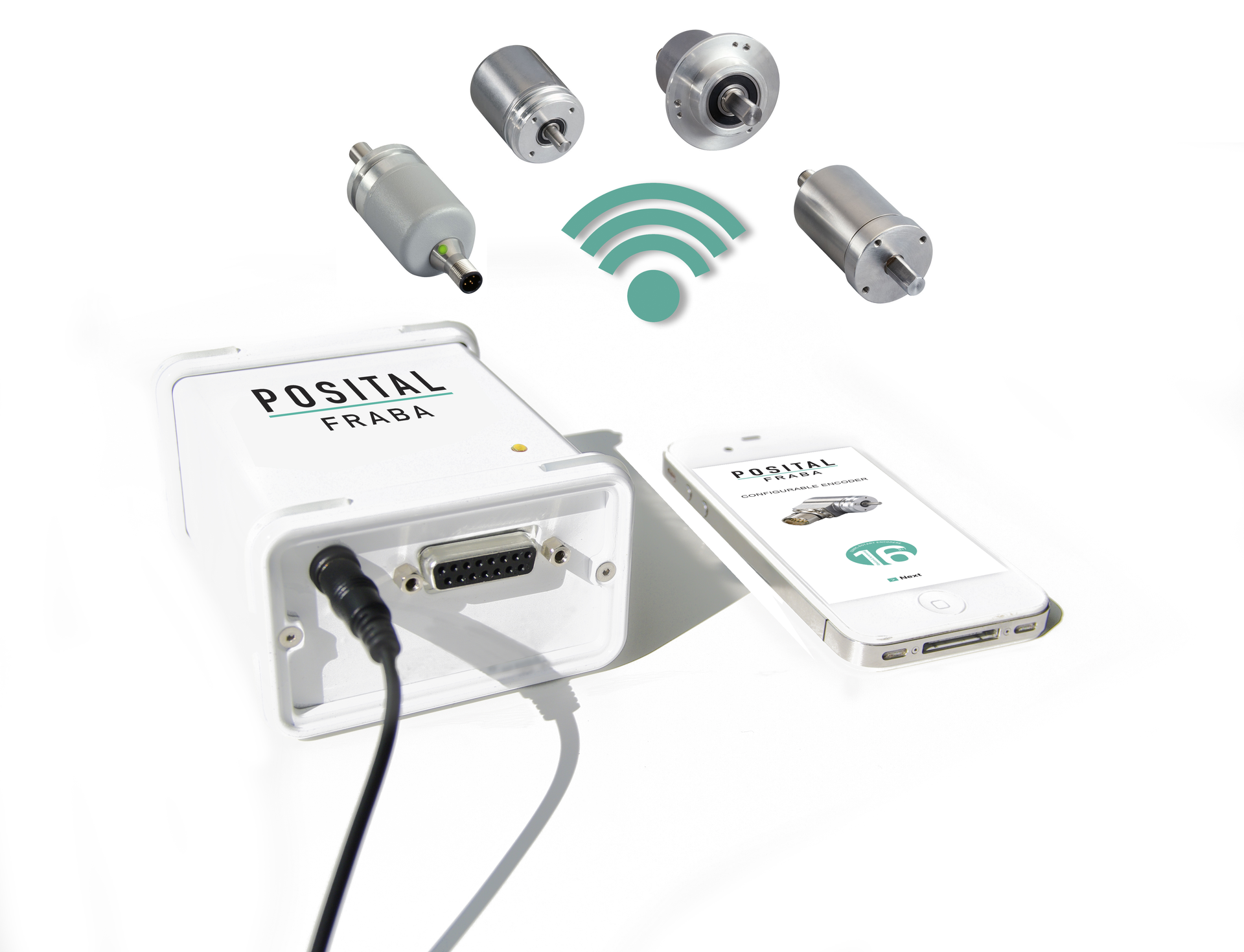

Aw 48835 Pressphoto ubifast Programming Tool

POSITAL is introducing powerful new programming capabilities and tools for their IXARC series of rotary encoders. With these new capabilities, the performance characteristics of these POSITAL encoders can be extensively modified through software changes, without requiring changes to physical components. This increases the versatility of these devices for end users and helps distributors offer a wide range of options without having to increase the number of models held in inventory.

Programming these new sensors is simplified with the introduction of POSITAL’s new UBIFAST configuration tool. This is a hardware module that connects to programmable encoders through an accessory cable. The UBIFAST tool has a built-in WiFi hotspot and webserver. Once the tool has been connected to the encoder and powered up, a smartphone, tablet or laptop computer can connect through WiFi. A configuration interface will automatically open up in a standard web browser window - no app, no software installation, no Internet connection required! The user is guided through the configuration process in a few simple steps. Once the incremental parameters (pulses per revolution, pulse direction and output driver) and/ or absolute parameters (resolution, number of turns, code, SSI direction and preset value) have been selected, programming the encoder will only take a few minutes.

To help users and distributors keep track of how each device has been set up, POSITAL has introduced an Internet-enabled configuration management system for programmable sensors. Whenever a device is reconfigured, the operator has the option of registering the changes with POSITAL through an automatic email interface. POSITAL will update the configuration history of the device, identified by serial number, in a database maintained by the company. If a replacement is required, this record can be retrieved and used to build a sensor with an identical configuration.

“Hybrid” versions of the new IXARC rotary encoders incorporate both absolute and incremental measurement capabilities in a single device. These can be configured to operate as absolute encoders (for position measurement tasks), as SSI incremental encoders (ideal for monitoring rotation speed) or as hybrid encoders that can measure absolute position and rate of rotation simultaneously.
