OPENdrive Introduced By OSAI – New EtherCAT Servo-Drives For Brushless Motors

Jan. 9, 2016

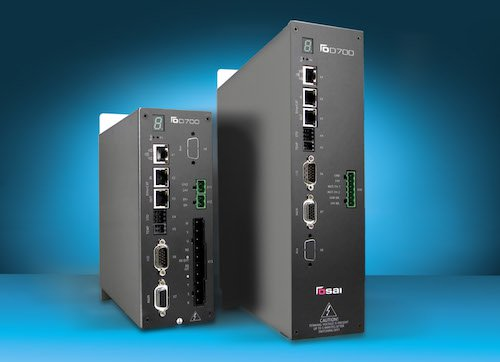

OPENdrive OD700 servo-drives for brushless motors are the latest new products from OSAI USA.

OPENdrive OD700 servo-drives for brushless motors are the latest new products from OSAI USA. These EtherCAT servo-drives integrate perfectly with OSAI’s OPENcontrol family. They complete the EtherCAT supply of flexible and open CNC systems that are equipped with numerous fieldbus capabilities to handle complex operating challenges and strong customizations.

“OPENdrive OD700 is ideal for metal working machine tools, plasma, oxy-fuel, water-jet, laser cutting, wood and stone machining systems,” reports Ivica Simunic, national sales manager for OSAI USA. “OPENdrive ensures precision and reliability for the most challenging applications.”

A key feature is automatic recognition of connected motors and configuration through “ODM”, a powerful browser executable both on PC and on machine board. This facilitates commissioning exclusively through the EtherCAT channel without modifying machine connections. ODM enables visualization and modification of characterization parameters of drives and motors in addition to drive analysis through diagnostic graphics.

ODM also enables drive functions such as digital filters for the compensation of mechanical imperfections and the actuation time of the brake motor to synchronize it with axis motions. A multi-track oscilloscope allows execution of detailed analysis of axes behavior for the best machine performance.

Six OPENdrive models are available with current ratings of 1A, 3A, 6A, 12A, 18A and 36A in three sizes. Each model has internal sampling times (50 seconds for the current loop and 100 microseconds for velocity and position loops) allowing high dynamic management. This also allows connection to an auxiliary encoder transducer for increased position accuracy control of the mechanical system.

All models have integrated SIL3 certified safety function controlling power to the drive during machine operation. Drives are equipped with two encoder inputs managing multiple primary and secondary transducers. OASI brushless motors, when coupled with the drives, provide high inertia and dynamic operation. All motors are equipped with thermal sensors and are available with an optional brake. Speed range available: 3,000, 4,000 and 6,000 rpm with stall torque range of 0.2 to 66 Nm.

OASI’s new EtherCAT Servo-Drives are backed by OASI USA’s more than 50 years experience providing leading original equipment manufacturers and machine builders with state-of-the-art CNC control solutions.

>>For more information on this product, click here.
