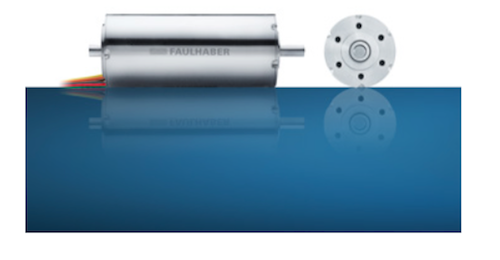

3274 BP4 Brushless DC Motor

April 14, 2016
In the fight for high performance with minimum weight, FAULHABER’s 3274 BP4 is the new champion in the ring.

The brushless DC servo motor, measuring 32 mm in diameter and 74 mm in length, has massive continuous torque of 165 mNm. Surprisingly, it weighs in at just under 320g, which is half the weight of conventional motors with comparable power.

The four‐pole brushless DC servo motor is ideal for applications in which high power and dynamic start/stop operation with the lowest possible total weight is an important factor. Perfect application ts include human- oid robots, electric grippers used in process automation and high‐performance traction drives used in inspection robotics.

The 3274 BP4 is overload‐resistant and operates without wear‐prone mechanical commutation. As a result, its operational lifetime is many times longer than that of a conventional DC micro motor. e slope of the motor characteristic curve is just 3 rpm/mNm, with a stall torque of 2.7 Nm. e 3274 BP4 can reliably deliver what the application demands even under the harshest ambient conditions, such as at low temperatures or high mechanical loads (e.g. in aerospace applications). is is made possible by a robust stainless steel housing and the omission of adhesives, which are otherwise usually used for assembly.

One standout feature of this motor series is the high exibility in its design. The FAULHABER series 3274 BP4 is equipped as standard with digital hall sensors. High‐resolution optical and magnetic encoders can be attached with ease to the rear multifunction ange. As an option, the motor is also available with analog (linear) hall sensors that can replace an encoder in many applications. Finally, a large selection of optimal performance precision gearheads rounds off the complete drive system.

>> For more information please click here.
