Programmable Time Delay Relay with Display

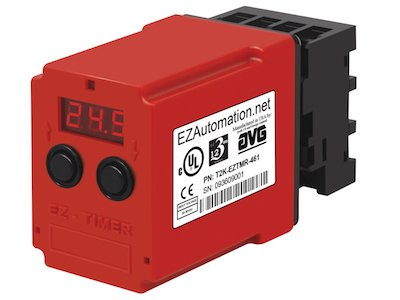

The EZTimer is a multi-function programmable timer with a LED display and two simple push buttons that can serve as an economical direct replacement for most octal or 11-pin socket time delay relays (TDRs) in the market.

Aw 132107 Pr5 1

The EZTimer is a multi-function programmable timer with a LED display and two simple push buttons that can serve as an economical direct replacement for most octal or 11-pin socket time delay relays (TDRs) in the market. EZTimers, and TDRs in general, can perform simple control functions without the need for a PLC or controller. A TDR is equipped with a type of shock absorber that does not allow full power to flow immediately. Instead, power is delayed and allowed to flow slowly in or out of the coil.
The five most common application uses of a TDR in an industrial environment and OEM equipment are: Conveyor Belt Timing, Light Manipulation, Automatic Engine Start Up, Furnace Fan Control, and Slow Motor Start Control. With the all-in one programmable EZTimer you have the flexibility to program the delay to activate the relay anywhere from 0.01 seconds to 999 hours. Furthermore, the standard multi-function EZTimer has four modes of operation that include: Delay on Make (Timed on Delay), Delay on Break (Timed off Delay), Cycle, and Single Shot modes. A more advanced programmable timer also offers Interval, Re-triggerable Single Shot, Inverted Single Shot, Trailing Single Shot, Inverted Delay on Break, and Accumulated Delay on Make modes of operation.
The EZTimer is available in industry standard 120 & 240 VAC, 12 & 24 VDC models. The impressive relay outputs are 2 Form C (DPDT or SPDT) with a rating of 10 Amps. Wits its bright RED LED display and simple push buttons, no knobs or pots are required to estimate the timing requirements. The display will also show remaining and elapsed time with 1% absolute accuracy. They are tamperproof with its programmable password protection, retains memory without a battery, and still offers a 50% cost savings compared to other timers while still proudly made in the United States!
