Portescap Introduces High Power 35DBM Can Stack Linear Actuator

Dec. 13, 2017

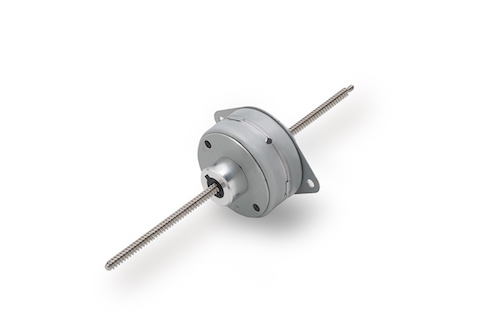

Portescap introduces the new 35DBM high power Stepper Can Stack Linear Actuator.

Portescap introduces the new 35DBM high power Stepper Can Stack Linear Actuator.
This 35mm linear stepper motor offers an enhanced design ideal for applications demanding high linear force. The new 35DBM features an optimized magnetic circuit powered by high energy neodymium magnets. The 7.5 deg step angle provides finer incremental movement with a high degree of accuracy and repeatability.

With a holding force of 112N, the 35DBM stepper linear actuator is ideally suited for use in applications such as auto injectors, laboratory automation, medical pipettes and valve actuation. Portescap’s 35DBM high-force actuators are fully customizable for adaptor tips, stroke lengths, windings, flanges and end of motion detection sensors.

The 35DBM is available in captive and non-captive versions with various leadscrew pitch and winding options on Portescap’s online motor selection tool, MotionCompass™. They are manufactured in an ISO certified facility and are RoHS compliant.

For more information, click here
