3 Watt SIP DC/DC Converter Optimized for Cost, Efficiency & Performance

June 20, 2018

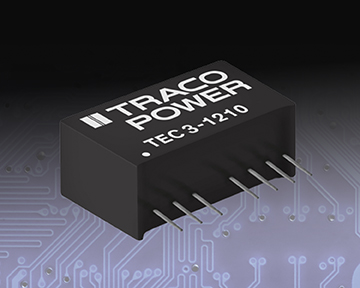

TRACO POWER has announced the release of their TEC 3 series of 3 Watt DC/DC converters in compact SIP 8 packages using the latest technologies to reduce cost while improving efficiency and performance.

TRACO POWER has announced the release of their TEC 3 series of 3 Watt DC/DC converters in compact SIP 8 packages using the latest technologies to reduce cost while improving efficiency and performance.

The TEC 3 Series consists of 32 models offering inputs of 4.5~13.2 / 9~18 / 18~36 / 36~75 Vin and outputs of 3.3 / 5 / 9 / 12 / 15 / 24 / ±12 / ±15 Vout with efficiencies of 75-86%. These 3 watt DC-DC converters provide: isolation of 1,600 VDC; full load operation from -40°C to +75°C (derate 3.4%/K above 75°C up to 90°C); tight regulation of 0.2% line and 0.5% load (10-90% load); undervoltage input protection; over-current protection; short-circuit protection; and remote on/off control. The series has been qualified: to meet MIL-STD-810F for shock, vibration and thermal shock; for high reliability of >5 Million hours per MIL-HDBK-217F; to meet IEC/EN/ES 62368-1 (UL60950-1) safety standards; and to meet EN55032 Class A standards for conducted noise. All models are backed by TRACPOWER’s 3 year warranty.

Products are in stock and available through the TRACO POWER global distribution network with manufacturing lead times of 12 weeks (typical).

For more information please click here.
