The supply combines touch panel integrated database process control and monitoring with high duty and low ripple 3000 ADC output. It is suggested for such applications as crimping weld connectors, making pre-compacted wire-to-terminal connections, and projection welding dashboard switches. It is also suitable for resistance welding motor armatures, and stranded wire to coil or terminal welding. The unit allows welding database profiles to be stored, monitored, and adjusted from anywhere in the world using TCP/IP Ethernet. The internal database technology provides process and production engineers with a large array of process control features that enhance production line quality control and monitoring methodologies. Supply features include low ripple and fast loop response to react to and control challenging applications. High voltage outputs permit long cabling for automation and power distribution to multi-headed systems. Operators can view work instructions and process manuals with weld schedules, and see image files with weld schedule for quality control and process checking. A 7-inch color touchscreen panel interface offers a context sensitive, intuitive menu system. High speed automation and communication ports provide full remote control capability.

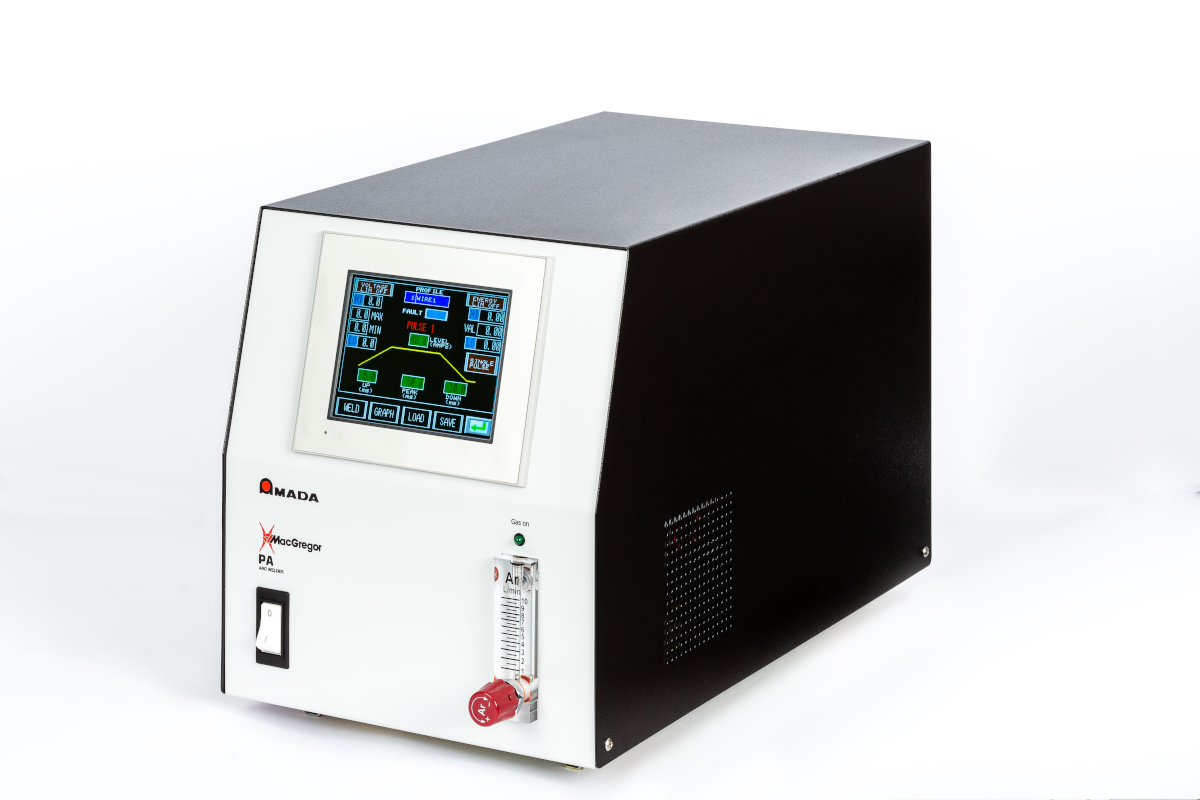

High Performance Resistance Spot Welding Power Supplies
Amada Miyachi now offers complete local product and sales support for the MacGregor DC2013-T Series high performance resistance spot welding power supply.
Sep 1st, 2019
