Drive Technology Slim multiturn encoder F5883

The challenge in the drive industry is to develop increasingly compact drives - which nevertheless have to show always higher performance, better dynamics and improved energy efficiency.

This content was submitted directly to this website by the supplier.

Kuebler
Kuebler

The challenge in the drive industry is to develop increasingly compact drives - which nevertheless have to show always higher performance, better dynamics and improved energy efficiency. This leads to new requirements also for the encoders. The new requirement, besides accuracy, robustness and reliability, is "the more compact, the better". To allow designing more compact drives, the encoder solution must be adapted accordingly.

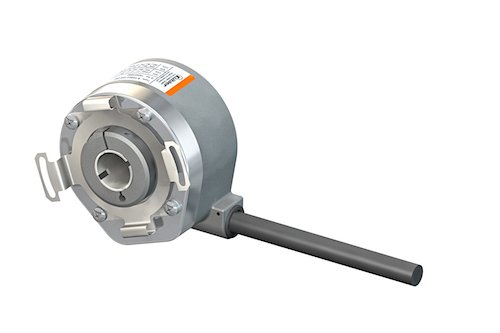

Therefore, Kübler developed a totally new product - the Sendix F5883 in the Motor-Line version. An optical hollow shaft encoder with a mounting depth of only 43 mm. Compared with the multiturn encoder Sendix 5883 equipped with mechanical gear, this new version allows saving 27 mm. This is a milestone in an industry that has to house its components in the smallest spaces. It opens up new possibilities when dimensioning the geared motor and installing the encoder in tight mounting spaces.

The Sendix F5883 in the Motor-Line version is based on the mature Sendix platform, which stands for robustness and reliability. Due to the Intelligent-Scan technologyTM, this totally optical encoder is highly accurate and 100% insensitive to magnetic fields. Also this encoder has excellent EMC characteristics.

The wide range of interfaces such as SSI, BiSS, SinCos, RS422 and Push-Pull, ensure flexible connection to frequency converters.

Thanks to its robust bearing structure in Safety-LockTM design, this encoder is particularly resistant to installation errors, shocks and vibrations.

It is available with a through hollow shaft of up to 15 mm and clamping on the A and on the B side. Therefore, it is the optimal solution for all usual geared motor drive shafts.

The reduced installation depth of 43 mm, combined with a tangential cable outlet, makes the encoder easy to install in tight mounting spaces, and therefore the optimal solution for compact integration. Because it has a similar installation depth as an incremental encoder, the F5883 Motor-Line will continue to contribute to the widespread use of multiturn encoders in the geared motor industry.



>>For more information, click here
