NEW Weidmuller Klippon® TB range of rugged steel enclosures: approved for worldwide use in industrial and hazardous environments

Dec. 2, 2016

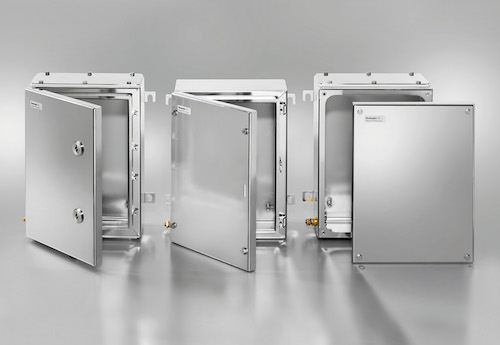

Weidmuller expands their Klippon® TB (Terminal Box) range of hazardous area steel enclosures with the introduction of three new versions– the MH (Multi-Hinge), QL (Quarter-Lock) and FS (Fixed-Screw).

Weidmuller expands their Klippon® TB (Terminal Box) range of hazardous area steel enclosures with the introduction of three new versions– the MH (Multi-Hinge), QL (Quarter-Lock) and FS (Fixed-Screw). These new enclosures feature a range of approvals that include cULus, AEx, ATEX and IECEx ratings, making them suitable for use in Class 1/Division 2 and Class 1/Zone 0, 1, 2, 20, 21 and 22. These enclosures comply with the latest, stricter requirements covering equipment for use in potentially explosive atmospheres, making them ideally suited for harsh environment applications in Oil & Gas, Petrochemical, Nuclear and Waste Water industries.
Weidmuller’s new Klippon® TB MH, QL and FS range enclosures share a number of design features that contribute to high performance in harsh environment applications, such as ingress protection ratings of IP66/67 along with NEMA 3, 4X and 12. Extended heat and cold stability testing have been administered to document the enclosures ability to withstand extreme usage environments (336 hours at 155°C/311°F and -65°C/-85°F for 24 hours). For cable entry flexibility, each enclosure is equipped with up to four gland plates that are secured with M6 hex-head screws. A silicone gasket is standard to ensure the enclosures are suitable for use in temperature extremes, ranging from -76F to 275F (-60C to +135C). Impact and corrosion resistant, these enclosures can also be used in environments that are exposed to salt air. A grounding stud on the cover and base of the enclosure conforms to the most recent standards and the base grounding stud can be replaced in case of damage. The enclosures are made of 316L stainless steel with a protective electro-polished finish. The Klippon enclosure series of MH, QL and FS are available in 12 sizes and 3 standard depths (5”, 6” and 8”).
The MH range enclosures are multi-hinged for increased flexibility. Users choose which side the lid hinges by moving the padlock tab to allow for the reversal of lid opening (left-to-right or right-to-left). The cover locking mechanism is located outside the sealed zone to prevent any occurrence of interference with the seal.
The QL range of enclosures feature a quarter-locking cover that requires a keying tool to open to prevent accidental opening or intrusion by unauthorized personnel.
The FS range of enclosures feature a non-hinged fixed-screw cover that is ideal for applications where space is not conducive for lid clearance when opened.
The Klippon range of enclosures carries the following approvals, ensuring compliance with worldwide requirements for use in hazardous locations and explosive atmospheres: (primary) cULus, AEx, Class 1/Division 2, Class/Zone, ATEX and IECEx. The enclosure series also carries approvals for Russia, China, Brazil, Maritime use: EAC, INMETRO, CCOE, GL (Maritime).
Weidmuller supports customers and partners around the world with products, solutions and services in the industrial environment of power, signal and data. The company develops innovative, sustainable and useful solutions that set standards in Industrial Connectivity today and continually work toward providing solutions for the technology challenges of tomorrow. The Weidmuller Group owns manufacturing plants, sales companies and representatives in more than 80 countries.

For more information, click here
