EPLAN Harness proD 2.6

Jan. 4, 2017

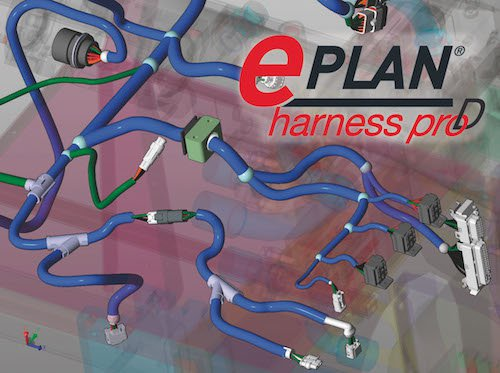

The new EPLAN Harness proD version 2.6 is intuitive 3D/2D software that covers all of today´s requirements for convenient, high quality wiring and wire harness engineering.

The new EPLAN Harness proD version 2.6 is intuitive 3D/2D software that covers all of today´s requirements for convenient, high quality wiring and wire harness engineering. New features include enhanced automatic wire dimensioning and intuitive routing of wires with predefined lengths. Open interfaces allow for true collaboration between mechanical and electrical engineering. In addition, version 2.6 delivers significant improvements in the handoff of design data to manufacturing drawings, such as integrating 2D wire drawings, which are automatically derived from the 2D/3D design environment and specify both dimension points and terminal points. This allows for automatic dimensioning, saving time and ensuring accurate results. Stripping lengths and wire coatings also can be defined in the design phase, and professionally depicted in the manufacturing drawings. This provides users with a quick and comprehensive overview of their projects.

Calculating wire lengths is easier than ever in EPLAN Harness ProD 2.6. For example, users may predefine a fixed length - for antenna cables. During the design process, the current and targeted length are shown precisely and users can see at a glance how the wires can be optimally routed. This allows for the reduction of variations, resulting in cost savings in storage and manufacturing. Additional functions for the creation of wiring units allow elements to be grouped together and for the assignment of component numbers to wiring units, thereby providing a more comprehensive project overview.

The connection of Harness ProD 2.6 to the EPLAN Platform and system openness to MCAD and ECAD ensures a continuous workflow between electrical and mechanical engineering. Another new feature: with version 2.6, EPLAN ECAD projects can be transferred directly into the wire harness software. The EPLAN Platform´s central parts management supports integrated data storage for all Platform products including Harness ProD, so users need only maintain master data in one system. This allows for integrated working processes for wire harness engineering from the schematics to manufacturing. The ease of use and integrated data in every phase of design to manufacturing lay the groundwork for quick and efficient results.

Numerous functional enhancements in Harness ProD 2.6 contribute to making wiring design and wire harness projects faster and more efficient. The software supports all industries in which wiring and wire harnesses must be routed, such as special-purpose vehicles, equipment manufacturers, wiring/wire harness prefabrication, machinery manufacturers and company divisions where interdisciplinary cooperation is required.
