Compact Industrial Unmanaged 5-Port Switch

Jan. 10, 2017
Antaira Technologies is a leading developer and manufacturer of industrial device networking and communication product solutions for harsh environment applications and is proud to announce the new compact LNX-C500 series.

Antaira Technologies is a leading developer and manufacturer of industrial device networking and communication product solutions for harsh environment applications and is proud to announce the new compact LNX-C500 series.

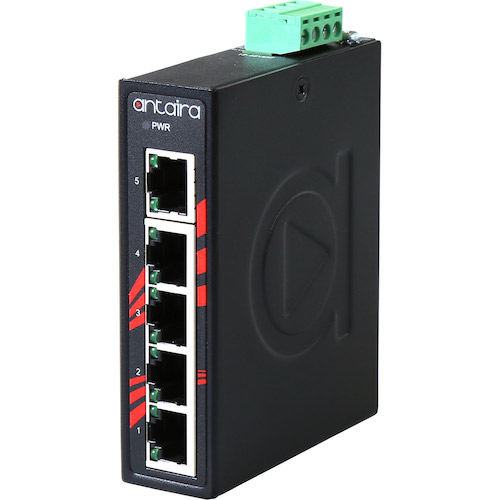

Antaira Technologies’ LNX-C500 series is an IP-30 rated compact 5-port industrial unmanaged Ethernet switch embedded with five Fast Ethernet RJ45 ports. The small form factor of this metal casing switch is 30% smaller allowing for a more versatile implementation. It is perfectly designed to fulfill industrial applications that have small space requirements such as factory automation, ITS, security, ITS transportation, power/utility, and water wastewater treatment plants.

The LNX-C500 is equipped with 5*10/100 RJ45 Ethernet ports with a backplane speed of 1Gbps. It supports a 12~48VDC redundant power input with reverse polarity and overload current protection. This product series can be either DIN-rail or wall mounted and the parts are included. The LNX-C500 series provides wide operating temperature range models for either a STD: -10°C to 70°C or an EOT: -40°C to 75°C. These units also have high EFT, surge (2,000 VDC), and ESD (6,000VDC) protection to prevent against any unregulated voltage. The compact size and light weight design has dimensions of 26mm (W) x 75mm (D) x 95mm (H) and a unit weight of only 1 pound. Lastly, it is backed by a five year warranty from Antaira Technologies.

For more information, click here
