Cube Encoders from POSITAL: Updating an Industry Favourite

Oct. 23, 2019

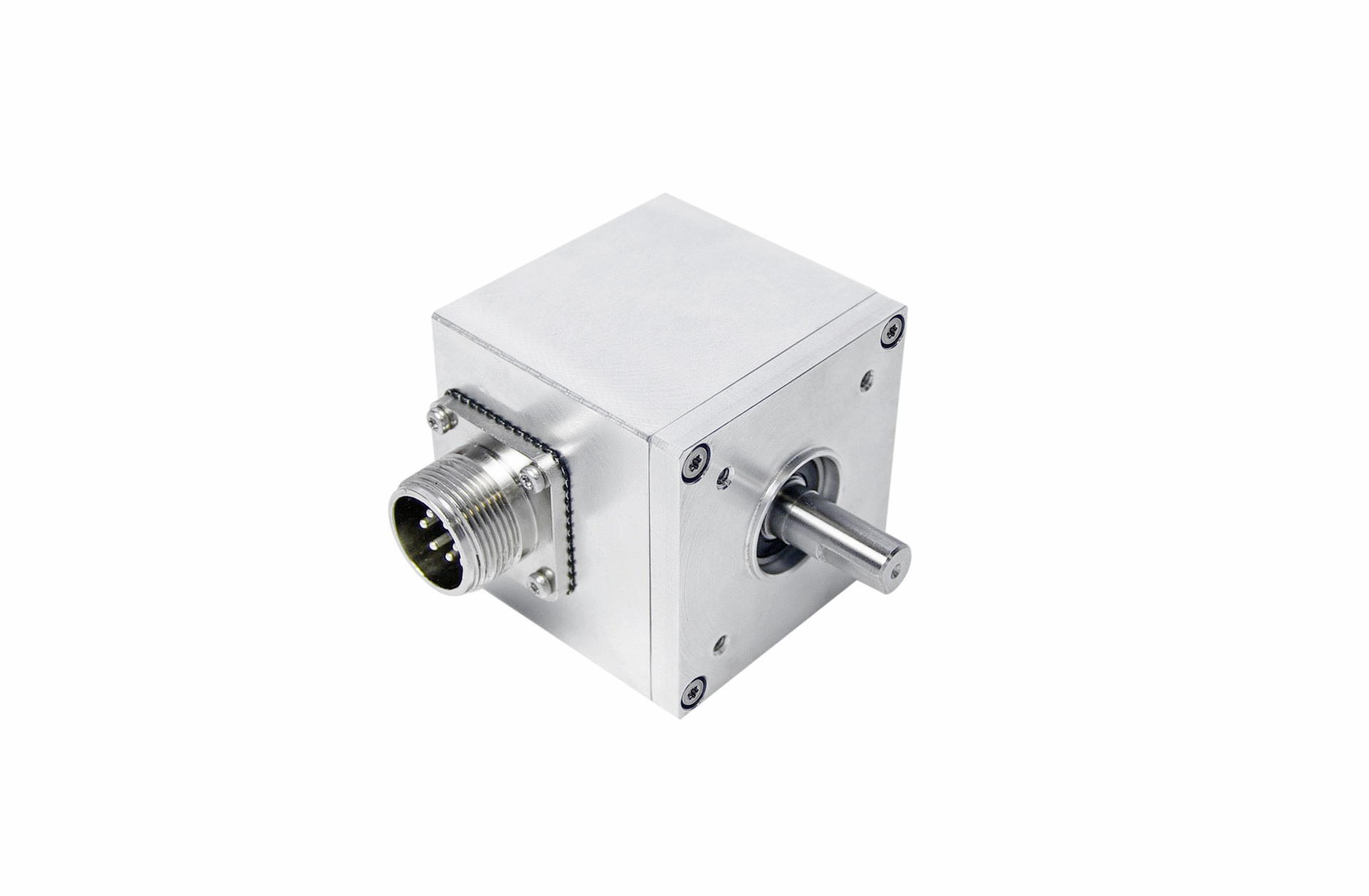

Cube encoders – incremental rotary encoders with a cube-shaped housing – have been popular with machine builders since the 1960’s, largely because these devices are easy to install without special mounts or brackets. Now POSITAL has updated this old favourite with new features and capabilities that will keep this design relevant for years to come.

POSITAL cube encoders are built around the company’s versatile magnetic measurement platform. The measurement module inside the cube provides high levels of accuracy and dynamic response in a rugged package that is tolerant of shock and vibration loading, dust and moisture. Best of all, these measurement modules are programmable. Resolution (number of pulses per revolution) can be set anywhere from one to 16,384 pulses per revolution (PPR) by simply updating the devices’ software, with no changes to mechanical components. Similarly, pulse direction and the output driver – either Push-Pull (HTL), RS422 (TTL) or Open Collector (NPN) – are defined through software. Device programmability is especially significant for distributors, system integrators or machine builders since it helps them control inventories. With programmable devices, they can hold a relatively small stock of ‘standard’ models and set them up for specific applications on an as-needed basis. When restock is necessary, POSITAL’s international production system can deliver product anywhere in the world in a matter of days at highly competitive prices. Minimum order quantity: One!

POSITAL’s cube encoders are designed to be used as drop-in replacements for traditional cube designs, with identical mechanical dimensions and interfaces. This makes them a cost-effective replacement for older units that have failed or become unreliable. They are also a versatile choice for new machines, retaining the easy-to-install characteristics of the original design, while introducing up-to-date levels of performance and durability.
