Advantech Corporation: Automation Control Panels with Communication and Field-bus Capabilities

These panels offer greater expansion capabilities as well as expanded DI/DO and field-bus control support.
Related To:
June 1, 2012
Aw 9723 1204np Advantech

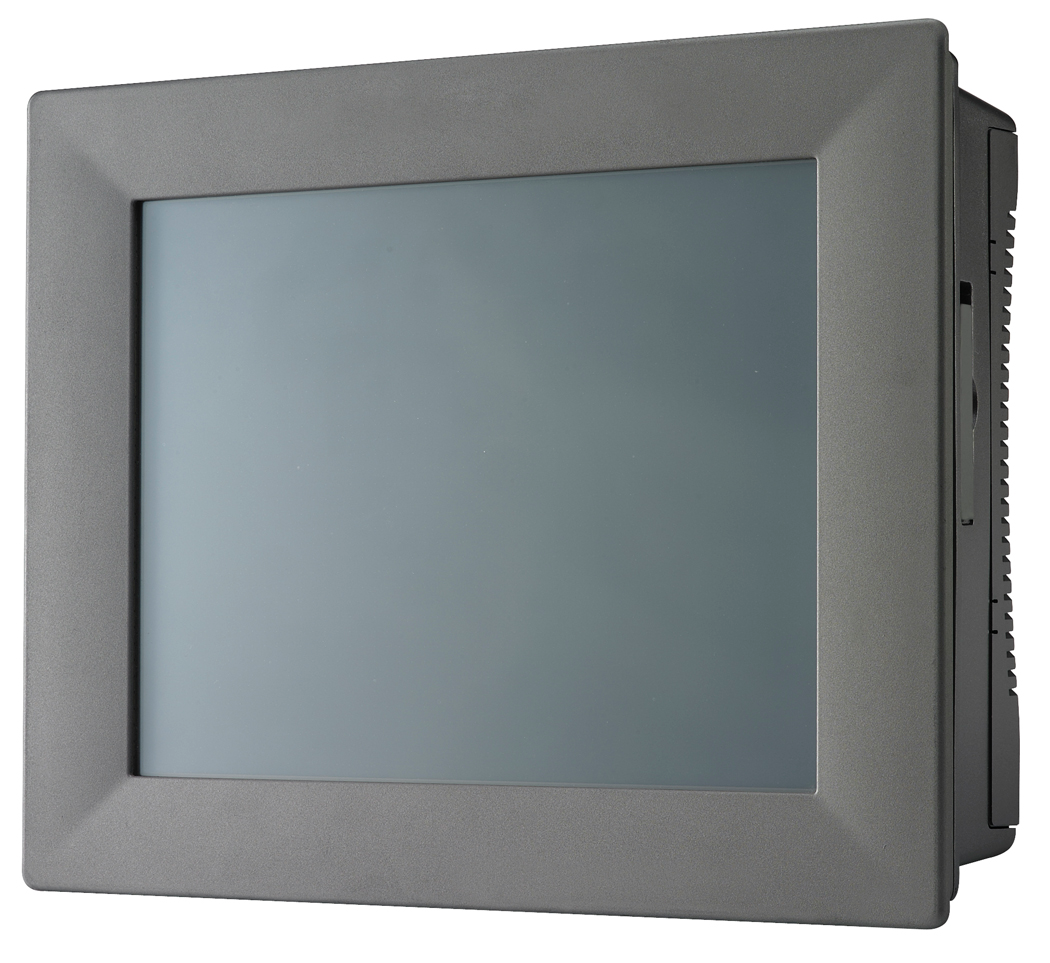

The 6.5-in. TPC-671H, 10.4-in. TPC-1071H, 12.1-in. TPC-1271H and 15-in. TPC-1571H Touch Automation Control Panels use a fanless low power consuming Intel Atom 1.8 GHz processor with 4 GB RAM, making them suitable for a range of machine and factory automation applications. The panels feature a PCI-e and Mini PCIe expansion slot that supports four control protocols (Profibus, PROFINET, EtherCAT, and Powerlink). This enables users to connect with PLCs for further control and monitoring ease as well as supporting the WSN (Wireless Sensing Network). In addition, all the panels except the 6-in. version are integrated with eight isolated DI/DO ports which help to connect with sensor devices for alarm function/event trigger at industrial environments. The units also feature RTC battery backup for real-time data management in case of accidental power failure. Combining an external antenna and communication modules, such as Wi-Fi, GPS, and Bluetooth improves their wireless performance. Each supports Microsoft Windows 7/XP/WES and WEC.

>> For more information on this product click here.

Advantech
www.advantech.com/ea
800.800.6889
