AutomationDirect’s line of Bryant wiring devices now includes extra-heavy-duty industrial grade duplex receptacles and watertight wiring devices.
Related To:
June 6, 2012
2 min read
Aw 10630 Bryant Watertight 5x7

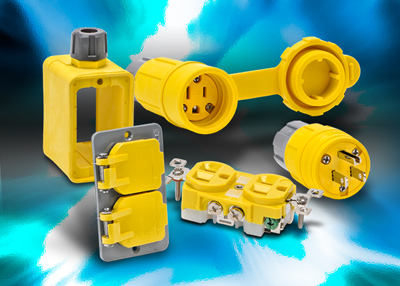

Bryant industrial grade duplex straight blade receptacles feature a full-face, wrap around design molded of high-impact chemical-resistant nylon. Available in 15A and 20A versions, the receptacles are designed with a one-piece copper alloy grounding system with integral solid brass grounding contacts. Eight wiring pockets provide convenient feed-through back wiring and clamp-type terminals with brass terminal screws, and accept up to #10 wire; easy-access break-off tabs support two-circuit wiring.  Available in gray or corrosion-resistant high-visibility yellow nylon, receptacles also feature a circuit ID marking area for clear identification of circuits. Industrial grade duplex receptacles start at $9.25.


Two-pole and three-pole watertight plugs and connectors have also been added. Recommended where moisture exists or casual submersion is possible, these devices are constructed with high-visibility yellow double-insulated thermoplastic elastomer housings. Individual neoprene bushings provide a watertight seal. Rugged PBT interiors provide excellent resistance to moisture and temperature. A tongue and groove plug-to-connector design provides optimum protection in wet and damp locations. The 15A and 20A connectors accept multiple cord diameters from #18/3 to #10/3; 30A models accept #8/4 cord. Watertight plugs and connectors start at $14.


Weather protective accessories, starting at $3.25,  have also been added, including NEMA 1 non-conductive, impact-resistant thermoplastic elastomer portable outlet boxes, dual-receptacle covers and blank box cover plates.
