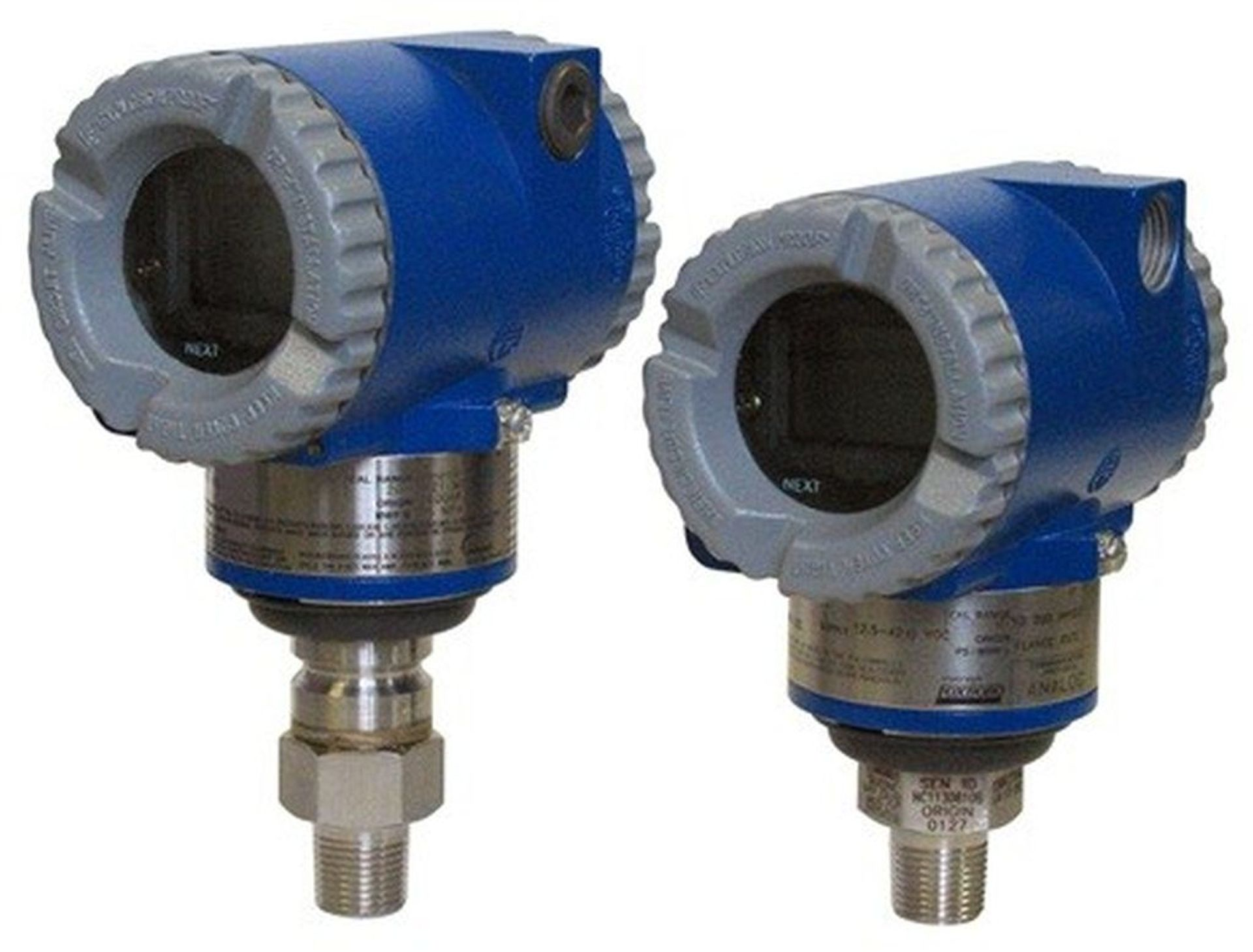

Foxboro I/A Series Pressure Transmitters Models IGP10S and IAP10S
The new intelligent, two-wire transmitters provide precise, reliable measurement of absolute or gauge pressure and transmit a 4 to 20 mA output signal with a superimposed HART digital signal for remote configuration and monitoring.
Product overview:
With their high level of performance and stability, the Foxboro I/A Series IAP10S and IGP10S pressure transmitters provide multiple benefits. They can help reduce inventory costs with a wide range of applications that traditionally require multiple separate transmitters. They increase accuracy with their Foxboro-patented multiple calibration technology. And they enable customers to accurately track time in service, which can improve predictive maintenance.
Key features:
•Industry-leading 400:1 turndown;
•During operation, a real-time, seamless transition from one calibrated range to another maintains accuracy as a percent of reading from 3 to 100 percent of the upper range limit;
•Foxboro patented multiple calibration technology;
•Time-in-Service features for advanced diagnostics;
•LCD indicator with on-board pushbuttons for easier configuration;
•Industry-leading five-year standard warranty, with a 17-year warranty available.
Key benefits:
•Maintains excellent performance over an industry-leading wide turndown range, meaning an IAP10S and IGP10S transmitter performs better than multiple separate transmitters designed to cover the same turndown range and reduce inventory;
•Foxboro-patented multiple calibration technology eliminates the need for traditional single-span calibration at an application-specific pressure range and can store multiple calibrated ranges in the onboard memory. Eleven preset calibration ranges cover the full pressure range of the transmitter;
•The Time-in-Service meter tracks both the total number of days the transmitter has been powered up in the field over its lifetime, as well as the number of days the transmitter has been powered up since the last Time-in-Service meter reset. This allows customers to better track reliability and gives them option of resetting the user-days value to zero via a HART communicator, a PC-based configurator or the local indicator. The lifetime service parameter cannot be reset.
