Weidmuller: Compact Power Supplies

Oct. 21, 2014

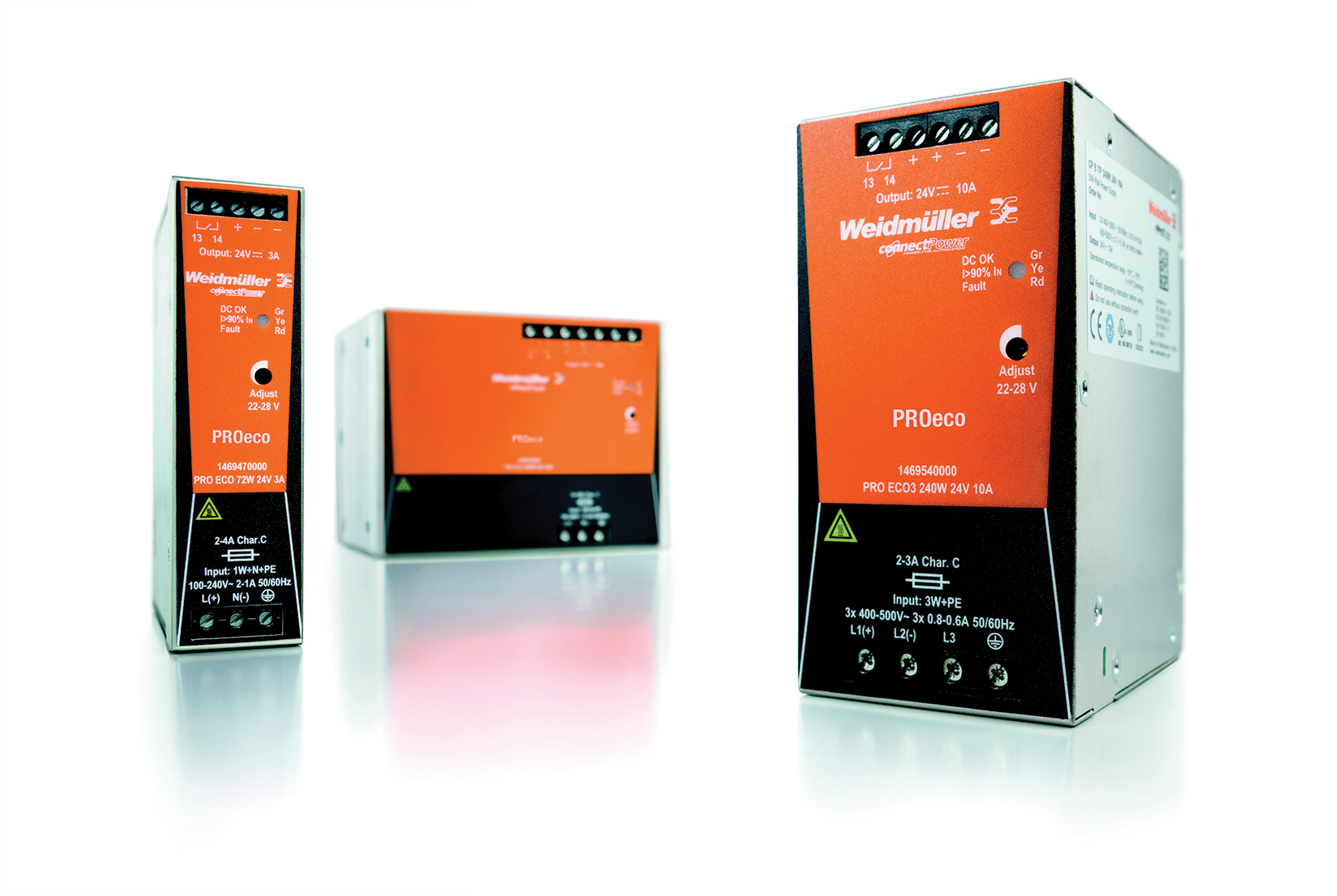

The PROeco range of power supplies is available in both single- and three-phase units that accept a wide range of AC/DC inputs.

An auto-detect feature on each module makes switching between ranges unnecessary. Outputs with 12, 24 or 48 VDC are available for loads up to 40 A. A tri-colored LED provides local output status (indicating <90%/>90%/>100% load) and integral relay contacts provide remote status monitoring for easy detection and diagnosis of power issues. The power supplies feature efficiency levels of up to 93%, which contribute to their extended service life and Mean Time Between Failures rating of more than 500,000 hours. The compact design, with a 100 mm housing depth, makes them suitable for use in small enclosures. The operating temperature range of -25 °C to +50 °C (70° C with de-rating) and international approvals, including cULus, CE and TUV, make them useful in a wide range of applications.
