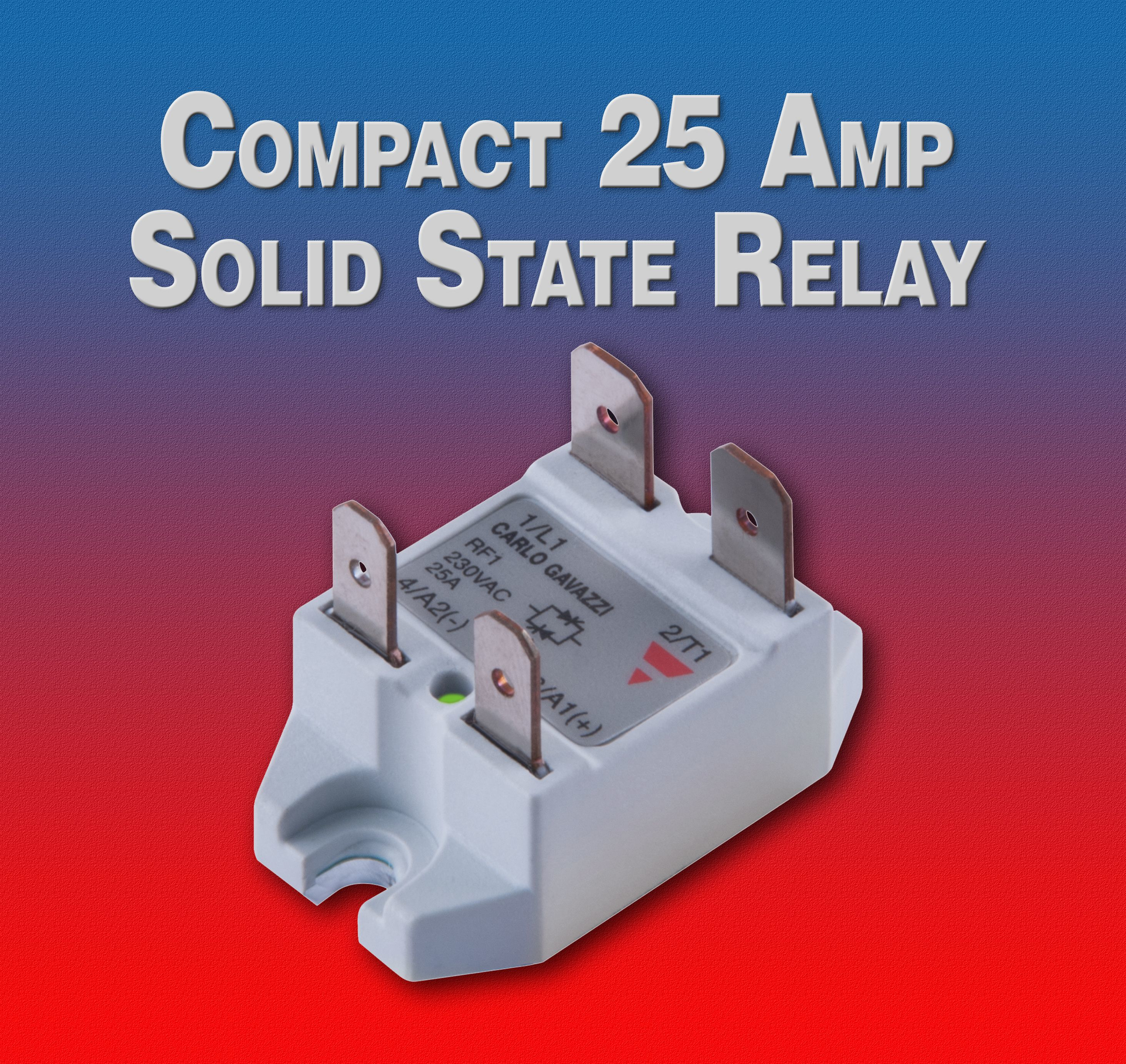

CARLO GAVAZZI is proud to announce the launch of their new RF1 Series Compact Solid State Relay. The RF1 Series provides compact solid state switching suited for applications with confined space. Long lifetime is ensured by CARLO GAVAZZI’s new assembly technology that significantly reduces stresses of the power semiconductor. The RF1 Series is ideally suited for applications where trouble free operation is required for a large number of cycles and where space is limited. The RF1 Series occupies only 30% of the panel space typically required for a typical panel mounted (hockey puck) solid state relays, it’s merely 36 x 21 x 24mm (H x W x D).
The RF1 Series is designed for control of resistive loads. The zero switching type (RF1A), switches ON when the voltage crosses the AC sine wave’s zero crossover point. The instant-ON type (RF1B), switches on at the instant when control voltage is applied. Integrated transils provide protection against over-voltage. A green LED indicates the presence of control voltage. Fast-on terminals for the input and output voltage enable fast and secure installation. The RF1 Series is provided with a convenient pre-attached thermal pad, making it ready for mounting on a panel or heat sink.
• Up to 280VAC line voltage
• Transils for over protection
• 5, 12 or 24VDC control voltage
• LED status indication
• Up to 25A load current
• CE mark and cRUus CSA and VDE approvals
• Zero crossing or Instant-on switching
• UL508 100K cycles endurance rating
The RF1 Series are available from Carlo Gavazzi’s North American network of sales offices and distributors, or at GavazziOnline.com.
