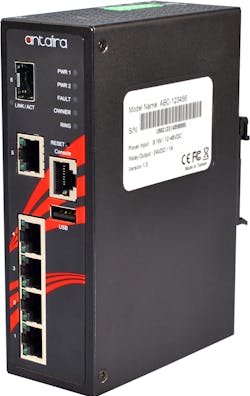

Antaira Technologies is a global leading developer and supplier of industrial device networking and communication solutions for harsh environmental applications and is proud to announce its expansion in the industrial networking infrastructure family with the LMX-0601G-SFP series.
Antaira Technologies’ LMX-0601G-SFP series is a cost effective 6-port industrial gigabit managed Ethernet switch that supports a12~48VDC power input. Each unit is designed with five 10/100/1000Tx Fast Ethernet ports and one dual rate 100/1000T SFP slot for fiber. The dual power input designed product series provides a reverse polarity, EFT, surge (2,000VDC) and ESD (6,000VDC) protection. There is also a built-in relay warning function to alert maintainers when power failures occur. This makes it ideal for applications requiring a high reliability, distance extension capability, and/or any harsh environment flexibility.
This product series is pre-loaded with “Layer 2” network management software, of which, it supports an ease of use Web Console or Telnet using a serial console with CLI configuration. All Antaira managed switches provide a redundant ring network function with RSTP and the ITU-G.8032 support, which eliminates the compatibility issue for any existing network concern. In addition, the built-in SNMP, VLAN, IGMP, and QoS features support the network planners to increase data transmission performance within the network. The external USB2.0 port allows users to export and save all the configuration settings. In addition, the port specific customizable labeling feature allows network planners to name each connection port. This allows for easy remote management by being able to easily read field devices.
The IP30 rated LMX-0601G-SFP series is backed by a five year warranty. The units are compact, fanless, and DIN-Rail/wall mountable. Each unit is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI). The unit also has temperature extreme version options for either a standard temperature range (-10 to 70°C) or an extended operating temperature range (-40 to 75°C). The model series have the dimensions of 46mm (W) x 99mm (D) x 142mm (H) and a unit weight of 1.5 pounds.
