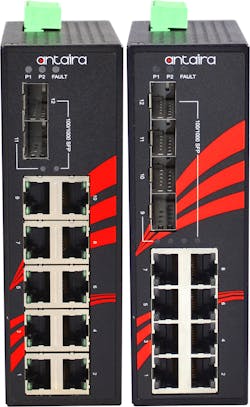

Antaira’s new LNX-1202G-SFP and LNX-1204G-SFP industrial Gigabit unmanaged Ethernet switches offer the highest density of Gigabit Ethernet port connectivity in the market. The combination of SFP fiber and RJ45 copper with high Gigabit port count connectivity have been designed to help fulfill special needs for security, transportation, and solar and wind power industries. These switches are ideal for any outdoor application with an extreme ambient weather environment.
The LNX-1202G-SFP and LNX-1204G-SFP series are the latest 12-port industrial grade Gigabit unmanaged Ethernet switch additions to Antaira’s already expansive product line. The LNX line supports a wide power input range of 12~48VDC. Each unit is designed with all RJ45 ports supporting Gigabit Ethernet speeds to provide maximum bandwidth capabilities. The LNX-1202G-SFP series supports 10*10/100/1000Tx ports and 2*100/1000 SFP slots; whereas, the LNX-1204G-SFP series supports 8*10/100/1000Tx ports and 4*100/1000 SFP slots. The SFP fiber ports are able to support any type of fiber connection; Multi-mode or Single-mode for short or long haul applications. These SFP ports can also support dual rate speeds, meaning either 100Fx or 1000Fx fiber connections are supported.
These new switch models provide high EFT, surge (2,000VDC), and ESD (6,000VDC) protection. The devices also have a dual power input design with reverse polarity protection. Additionally, there is a built-in relay warning function to alert maintainers when power failures occur. The LNX-1202G-SFP and LNX-1204G-SFP are ideal for applications that require high bandwidth, reliability, or distance extension.
The LNX-1202G-SFP and LNX-1204G-SFP series are backed by a five year warranty with an IP30 rated, compact, fanless, DIN-Rail and wall mountable design. Each product is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI) and temperature extremes. Operating temperature version options include a standard -10 ~ 70°C model range or an extended -40 ~ 75°C model range. The models conform to the following dimensions of 46mm (W) x 99mm (D) x 142mm (H) and a unit weight of 1.7 pounds.
