Back Blow Air Nozzle For Cleaning Inside Diameters

EXAIRs new 1/4 NPT Back Blow Air Nozzle has been designed to effectively blow debris and liquids from pipe or hose inside diameters, channel, bores, holes, internal threads and other internal part features.
Related To:
June 12, 2015
2 min read
Aw 76560 Image003 3

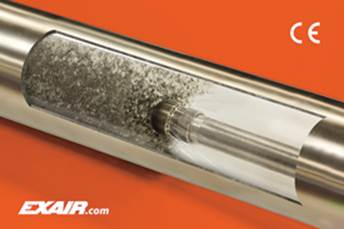

EXAIRs new 1/4 NPT Back Blow Air Nozzle has been designed to effectively blow debris and liquids from pipe or hose inside diameters, channel, bores, holes, internal threads and other internal part features. An array of holes provide a forceful 360 degree airflow to clear out coolant, chips and light oils from machining processes. This nozzle prevents blowing chips further into a part, tube or pipe and eliminates any safety hazard created by blowing debris out the far end of a pipe or tube.

The Model 1006SS Back Blow Air Nozzle is manufactured with a small profile and will fit inside openings as small as 7/8 inch and is effective on diameters up to 4 inches. It is constructed of type 316 stainless steel to provide durability and superior resistance to corrosion. Installation is simplified and a secure fit is assured with 5/8 inch flats milled on the body. Since airflow is directed back toward the operator, personal protective equipment is recommended. Chip shields to protect the operator from the exiting debris are available. Extension pipes from 12 inches to 72 inches are stocked to provide necessary reach for longer tube and pipe clean out.

Sound level is low at 80 dBA and meets OSHA noise requirement 29 CFR 1910.95(a), as well as being CE compliant. Price is $92.

For more information, click here.
