ASI: 3 Phase 24 VDC High Efficiency DIN Rail Power Supply

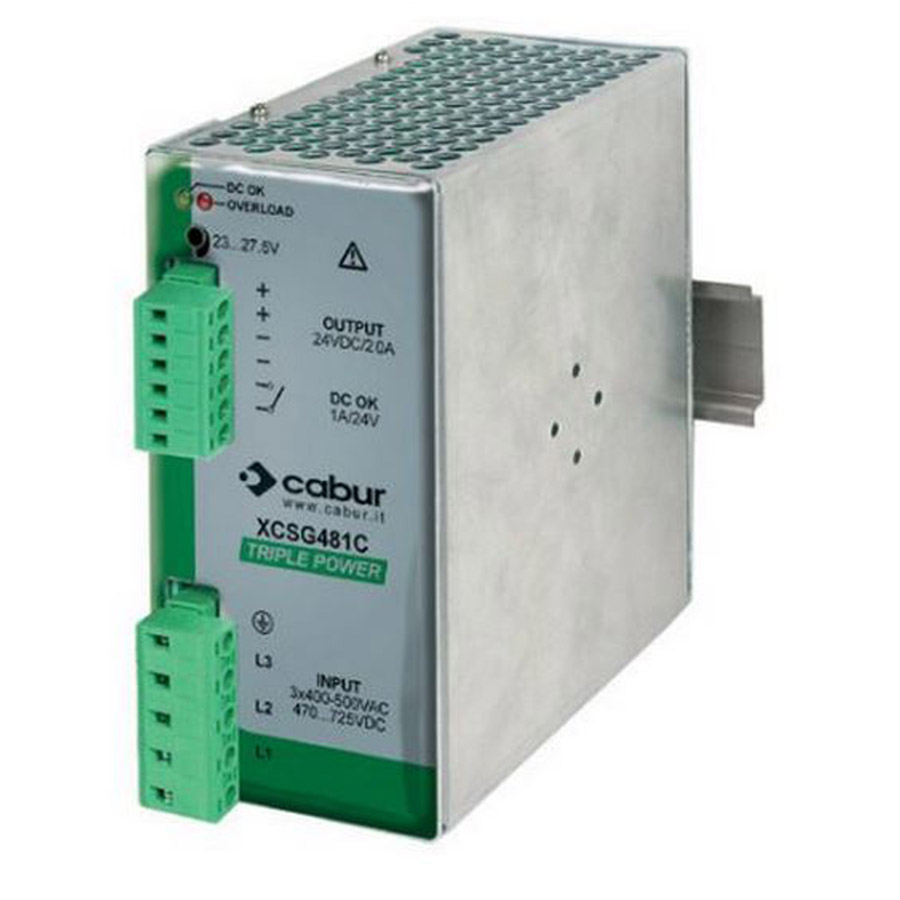

The XCSG481G is cUL rated at 20 Amp at 24 VDC and requires less than three inches of space on a DIN rail.
Related To:
July 9, 2015
Aw 82803 1506np Asi

The wide input voltage range of 340 to 550 VAC makes the unit a viable power solution for worldwide applications. Because of its high efficiency design it is able to achieve a 92% or greater efficiency, meaning it stays cool longer. Features include: pluggable connections to simplify installation and maintenance, high reliability against overvoltage due to AC power line failures, high outrush current for starting up heavy loads, and design intended for use in SELV and PELV circuitry. With the purchase of an external accessory the unit can be adapted to be a parallel or redundant power supply. Temperature rating is -20 to +60 ºC, with derating over 50 ºC/overtemperature protection.

>>For more information on this product, click here
Automation Systems Interconnect, Inc. (ASI)
www.asi-ez.com
877.650.5160
