Converters Provide Remote On/Off

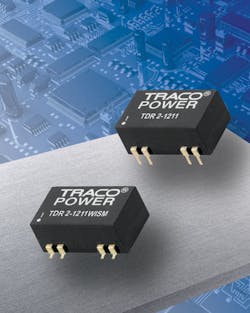

The TDR Series of high-density DC-DC converters with remote on/off capability measure 0.74x0.50x0.35-in.

Aw 788 1103 Par Np05

The converters are offered in 8 families with choices between: 2 or 3 watts of power; 2:1 wide input range (4.5-9 / 9-18 /18-36 / 36-75VDC) or Ultra-Wide 4:1 Input Range (4.5-18 / 9-36 /18-75VDC); and SMD or DIP packages. All products feature tightly regulated single or dual outputs ranging from 5-15VDC; 1500VDC isolation; -40°C to +85°C operating temperature; 80-84% efficiency range (typical); remote on/off control; and cUL60950-1 safety approvals.

PowerGate LLC
www.powergatellc.com/tdr.html
866.588.1750
