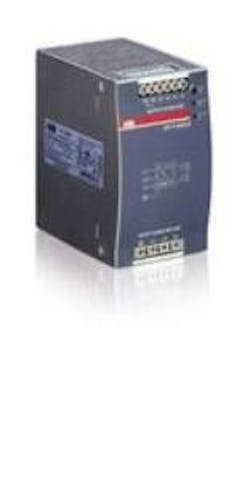

Three Phase Power Supply

Like the CP-E range the CP-T delivers 50% more power than the competition at typical temperatures. This means you get 50% more power and 50% more reliability than the competition. When theirs is reaching the load/temperature limit, ready to shut down, the ABB CP-T is just getting started, cool and ready to deliver reliable 24 or 48 VDC control power. Upgrade to ABB CP-T three phase power supplies today, you will not go back. Stocking distributors USA and Canada. . . . Read More

ABB announces an excellent expansion to its line of feature rich and reliable power supplies. The 70 degree C rating of these power supplies means that they can deliver 50% more power than the competition with a similar rating. The CP family of power supplies provide reliable operation and long life because of the extra power head room designed into each product.

Benefits of CP-T Power Supplies:

•  Direct connection to 3 phase allows for the elimination of a separate Control Power Transformer saves space, heat, wiring time and the expense of a transformer
•  High ambient temperature rating means ABB power supplies can continue when others will shutdown
•  Many International and North American agency approvals mean these power supplies can be used at your entire customer base
•  Wide input voltage range provides 24VDC or 48 VDC control voltage regardless of your applied 400 to 500V 3 phase voltage


CP-T Key Features:

•  Adjustable Output voltage in 24 V or 48 V DC range
•  Power range 120 W, 240 W, 480 W, 960 W
•  3 phase 400 to 500VAC input
•  Can also operate on loss of single phase at 75% of power without interruption
•  Ambient Temperature range between -25 degrees C and +70 degrees C
•  Signalling relay contact to communicate power supply health
•  Isolation Input to Output = 3 KV
•  Insulation output to ground = 1.5 KV
•  UL 508 Listed, UL 60950, CSA C22.2, CE, ANSI - ISA1212
•  Class 1 Div II hazardous location

ABB Inc. - www.abb.com
