Bareboard IP Power for Integration and Industrial Use

Sept. 3, 2010

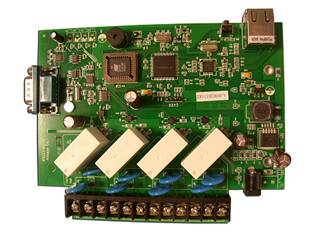

The 9223K is an industrial grade 4 port bare board relay perfect to power management through an Ethernet connection.

This device can easily integrate with other devices and allow power control with your integrated system. With the 9223K robust design and high quality components it provides an added incentive to other devices or can be used independently. The 9223K brings a economical solution to a professional industry.


1. Accessible with popular web browsers - IE, Google Chrome, Netscape & Firefox.
2. Network protocols supported: Http, DDNS, DHCP, Virtual and Dynamic IP. SNMP & SMTP.
3. Industrial 4 Port Relay design network controller.
4. Each relay can support voltage of 250VAC / 30Vdc & current up to 10Amp Normally Open (NO), 6 Amp Normally Closed(NC).
5. Power surge protection design to protect against high voltage power surge.
6. Designed to meet high voltage and current safety standard design and regulation.
7. Reliability and testing certification MBTF +200,000 hrs.
8. RS232 Control by inquiry (OEM projects) for system integration.
9. PCB standard safety design of 5mm soldering distance.
10. Timer Schedule - pre-set the time schedule to turn on / off thru network.
11. Support NTP ( Network Time Protocol) - synchronize the time to the Internet web.
12. SDK (VB & VC) for own software development
13. Embedded web server – No PC needed to connect.


- System Integration

- Remote Power management

- Automation

- Enhance products with a remote power control

- Digital Signage

- Lighting control

- Power Scheduler

- And more…………

AVIOSYS International Inc -
