Cylinder Position Sensors Offer NPN Outputs and Flexible Mounting Options

TURCK announces that the company's line of BIM-UNR magnetic cylinder position sensors - designed to mount within C-groove cylinders with no accessories required - has been expanded to include sensors with NPN outputs.

This content was submitted directly to this website by the supplier.

Aug 31st, 2010

Aw 1480 1008 Turck Pr3

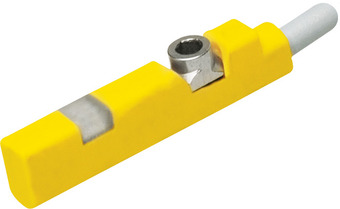

BIM-UNR sensors are also now enhanced with a combination mounting screw that grants users the flexibility of choosing a 3/16" (1.3 mm) Allen wrench or a flat-bladed screwdriver for sensor installation. Sensors can be securely mounted with a simple quarter-turn of the mounting screw, which is located in close proximity to the cable exit. This design ensures the sensors remain firmly fastened, even if a cable is pulled.

About BIM-UNR Sensors

With dimensions of only 2.9 x 4.6 x 18 mm, BIM-UNR is one of the most compact sensors on the market. For easy installation, this miniature sensor can be inserted into a C-groove from the top rather than from the side. The sensor's active sensing element is placed at the bottom of the groove - as close to the magnet as feasible - to deliver reliable detection, particularly on short-stroke cylinders. In addition, BIM-UNR provides high immunity to EMC interference, in accordance with EN 60947-5-2.

TURCK - www.turck.us
