3D Camera Adds Color

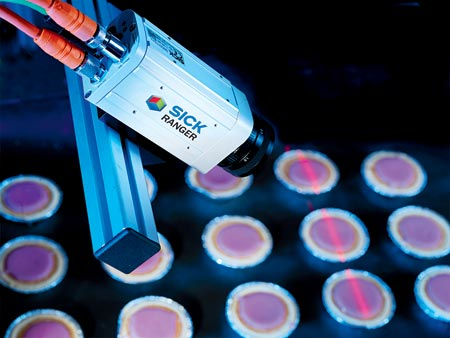

The ColorRanger E camera is billed as the world’s first high-speed 3D camera with high-quality color capability.

Jul 5th, 2010

Aw 1623 1007 Sick

By measuring both the 3D shape and the color of objects, more reliable decisions can be made, allowing production plants to improve uptime, throughput and product quality. The camera is used to solve various inspection tasks by measuring shape, contrast and surface defects and replaces the need for several different cameras for the same task. The ColorRanger E provides high-resolution RGB color at up to 3072 pixels per channel. With simultaneous 3D and color information at more than 11 kHz, multiple inspections can be performed in parallel at full production speed.

SICK Inc.
www.sickusa.com
800.325.7425
