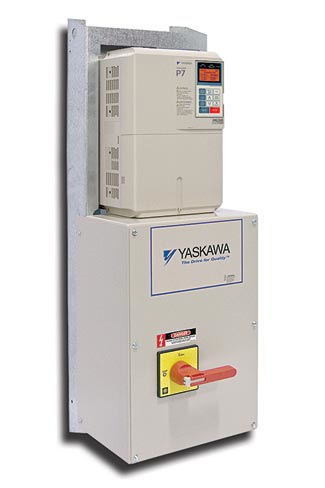

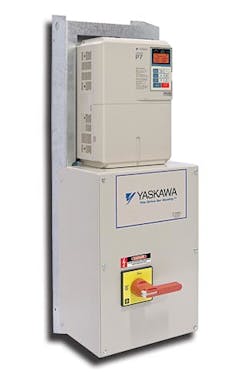

Drive Package Saves Space

The P7S Slim Configured Package provides a P7 variable torque AC drive in a space-saving NEMA 1 package that can accommodate several common options, such as circuit breakers, filters and reactors.

Jun 4th, 2010

Aw 1716 1006 Yaska

The P7S Slim Configured Package has been designed for flexibility in providing features and options commonly requested. An input disconnect is included as standard. Ratings include: 208V, 3 phase, 5 to 40HP; 240V, 3 phase, 5 to 40HP; and 480V, 3 phase, 5 to 100HP. Options include: 65kA circuit breaker disconnect; 100kA circuit breaker disconnect; input filter; 3% or 5% line impedance; engraved nameplate; pneumatic pressure transducer, 3-15 PSI; and 4-20mA analog output(s). Network communication is via BACnet, APOGEE FLN, Metasys N2, EtherNet/IP, LonWorks, Modbus, DeviceNet, Profibus and Modbus TCP/IP.

Yaskawa Electric America Inc.
www.yaskawa.com
800.YASKAWA
