Panel PCs Expand Options

Gold Industrial Panel PCs reportedly provide greater latitude in the automation and control process, eliminating the limitations and design roadblocks imposed by conventional HMIs/Panel PCs.

Mar 5th, 2010

Aw 2033 1003 S Maple

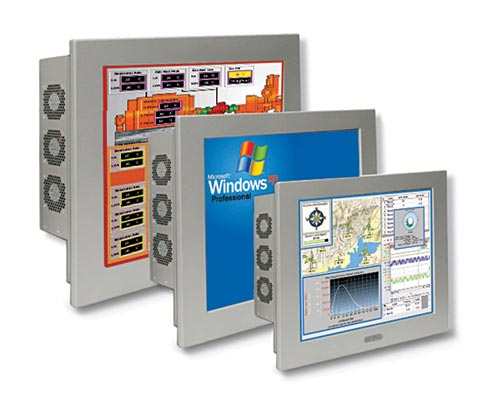

Available in 15-, 17- or 19-in models, they are powered by the 64-bit Core 2 Duo Intel processor. Each PC provides two Ethernet ports, five serial ports, and four host USB ports (six host USB ports on the 19-inch model). The graphic capabilities include a bright high-contrast SXGA TFT Display with 16 million colors with 1280x1024 resolution. An 80GB “anti-shock” hard drive, upgradable to 160GB, comes with Microsoft Windows XP Professional and includes 1GB of DDR2 DRAM, upgradable to 3GB. Each unit is operational in temperatures ranging from 0 to 50°C and in humidity ranging from 5% to 95%. They have a NEMA4/12 (IP65) rating, are RoHS Compliant and are CE and FCC certified.

Maple Products Inc.
www.maplesystems.com
425.745.3229
