Reliable Water Flow Measurement

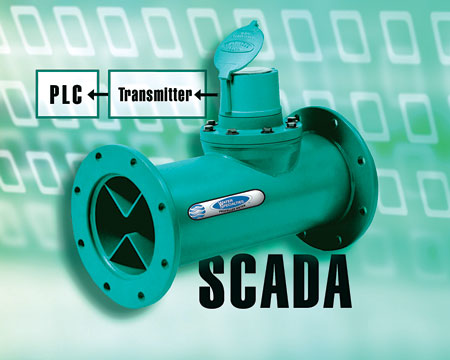

The Model ML04 Water Specialties Propeller Flow Meter is available with an optional transmitter that provides a 4-20mA output, which indicates either flow rate or totalized flow volume in support of Supervisory Control and Data Acquisition (SCADA) Systems.

Jan 11th, 2010

Aw 2198 1001 W Mcrom

Billed as highly reliable, yet simple-to-use, ML04 is a steel flanged-end tube meter with indicator-totalizer. It features measurement accuracy of ±2 percent and measures liquid flow from 40 to 35,000GPM depending on line size, which can range from 2 to 48 inches. Designed for temperatures up to 140°F, the ML04 provides a 4-inch display with 250-degree dial, six-digit totalizer and test sweep hand. This register can be specified for GPM, CFS, MGD or any standard unit of liquid measurement. The meter is said to be an ideal choice for measuring clean water flows in multiple types of municipal and industrial applications. Meter materials and performance meet or exceed AWWA standard C704-08.

McCrometer Inc.
www.mccrometer.com
800.220.2279
