Handle Complex Motion Tasks

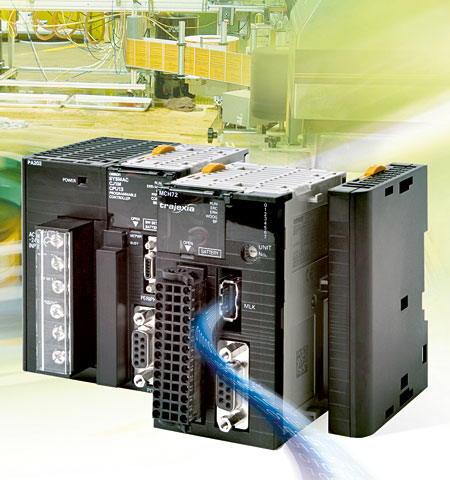

The Trajexia-PLC CJ1W-MCH72 motion controller module integrates with the vendor’s CJ-Series PLCs to handle complex motion tasks for up to 30 servos or inverters (AC drives) over a high-speed motion network.

Dec 1st, 2009

Aw 2298 0912 S Omron

It is suited for OEM applications where panel space reduction is a priority, and cost reductions in design and installation are essential to competitively price the finished machine. The module is designed to meet demanding motion control requirements while minimizing space, saving on wiring, optimizing design and allowing HMI integration. The module can operate up to 14 tasks simultaneously and control up to 30 axes over Mechatrolink-II Motion bus with independent position, speed or torque control for every axis. Included in one compact module are digital I/Os, Mechatrolink-II master connection, and serial port for external encoder input.

Omron Electronics LLC
www.omron247.com
800.556.6766
