Replace VersaView Displays

    Dec. 1, 2009

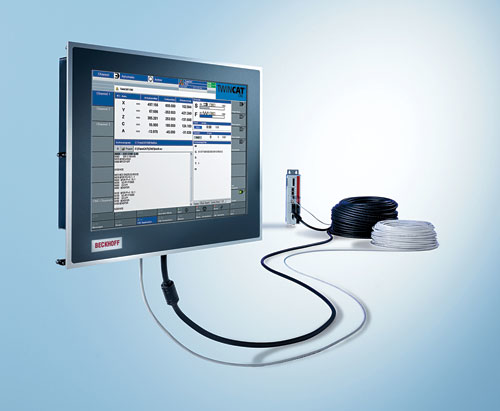

    The CP6xxx series of control panels and panel PCs are offered as low-cost and reliable alternatives for quick replacement of 12-in and 15-in Allen-Bradley VersaView displays.
    Aw 2316 0912 Beckhff
    CP6xxx displays feature an aluminum front with sheet-steel rear cover, optional touch screen, optional function keys and/or optional alphanumeric keyboard. The front side is rated with IP 65 protection and the rear side with IP 20. These panel PCs offer Intel Celeron M ULV, Core Duo or Core2 Duo processor options, and an on-board graphic adapter, Intel GMA950, DVI-I connector. The panels provide 1 Mini PCI slot free for cards installed ex factory, and come with 512MB DDR2RAM, expandable ex factory to 3GB. The CPGxxx series offer Intel IXP420 with XScale technology, clock frequency of 533Mhz, 128MB on-board RAM, and a slot for 1 Compact Flash card accessible from the rear side.Beckhoff Automation LLCwww.beckhoffautomation.com952.890.0000
