Customizable, Embedded CANbus Controller

The CANatomBox is a compact embedded controller targeted for Windows-based embedded CANbus control applications.

Dec 1st, 2009

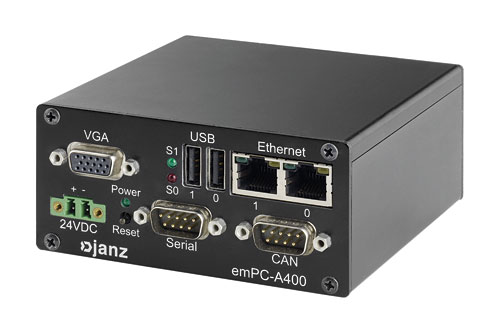

Aw 2321 0912 Saelig
Based on Intel’s 945GME 1.6GHz Atom processor, the controller box is constructed using high-reliability components, and is application-customizable even in small quantities. With 512MB SD-RAM and 2GB in CompactFlash, the system boots quickly, has passive cooling and no moving parts. Standard DIN-rail-mounted units measure 3.7x6.3x9in. while a 2-PCI-slot version measures 5.7x6.3x9.0in. The CANatomBox features front-panel availability for two 10/100MBit/s Ethernet ports, status LEDs, an RS232 serial port, two opto-isolated CAN ports and two USB2.0 ports. Windows Vista/XP/CE, Linux or other choices can be preinstalled, together with application software to fit user needs.

Saelig Co. Inc.
www.saelig.com
585.385.1750
