Cordsets for Profinet Connectivity

A 4-wire Profinet cordset line has been developed to provide plug-and-play connectivity for applications using Profinet protocols.

May 6th, 2009

Aw 2965 0905 Turck

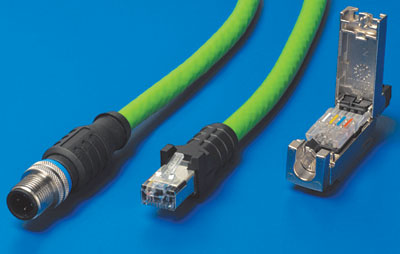

These cordsets connect to the vendor’s Ethernet gateways, which can be connected to up to 32 I/O modules per gateway, to allow integration into current fieldbus structures. The cordset line offers both M12 Ethernet D-coded and RJ45 connector options, allowing users the option to mix-and-match combinations. The cordsets are also available with color-coded field wireables to convert hard wiring to quick disconnect. The cordset includes cable that meets IEC 11801:2002 Cat 5 and TIA 568B: 2001 Cat 5e requirements.

Turck Inc.
www.turck.us
800.544.7769
