Industrial WLAN Access Point

Oct. 1, 2008

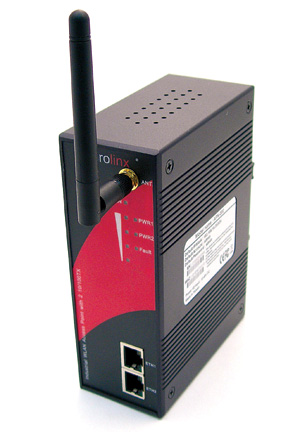

Designed for industrial applications, the APN-200 is an 802.11b/g WLAN with 2 ports LAN Access Point.

It can be configured to operate as an access point, bridge or repeater. The APN-200 is easily configured using a Web interface via LAN port or WLAN interface, says the vendor. In addition, the APN-200 provides a P.O.E. (Power over Ethernet) model (APN-200-P) that provides a PD feature on the ETH2, which is fully compliant with the IEEE802.3af P.O.E. specification. APN-200 features include: high-speed air connectivity with WLAN interface that supports up to 54Mbps link speed; high security capability, with WEP, WPA, WPA-PSK (TKIP, AES), WPA2, WPA2-PSK (TKIP, AES), 802.1x and RADIUS supported; daisy chain support to reduce usage of switch ports; and redundant power inputs: 12VDC ~ 48VDC on terminal block.

Aaxeon Technologies Inc.
www.aaxeon.com
714.671.9000
