    Rail-mountable Control Transformers

    Aug. 2, 2008

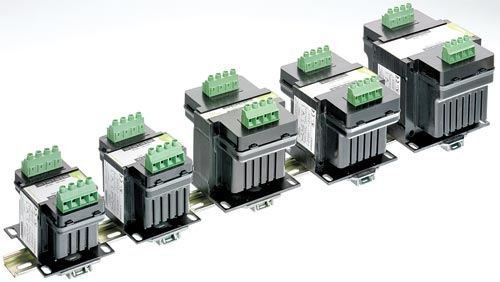

    The CPT series of control panel transformers is designed specifically for high inrush applications that require reliable output voltage stability.
    Aw 3656 0808 Phnix
    The transformers maximize inrush capability and output voltage regulation when electromagnetic devices are initially energized. The series features a DIN rail-mount foot, or they can be panel-mounted. They have touch-safe Combicon connectors with dual secondary connection points. All devices accept single-phase input voltages of 220, 230, 240, 440, 460 and 480VAC.  They provide output voltages of 120, 115, or 110VAC with VA ratings of 50, 100, 150, 250 or 500VA.Phoenix Contact Inc.www.phoenixcontact.com800.322.3225
