PC-based Industrial Workstation

Sept. 9, 2007

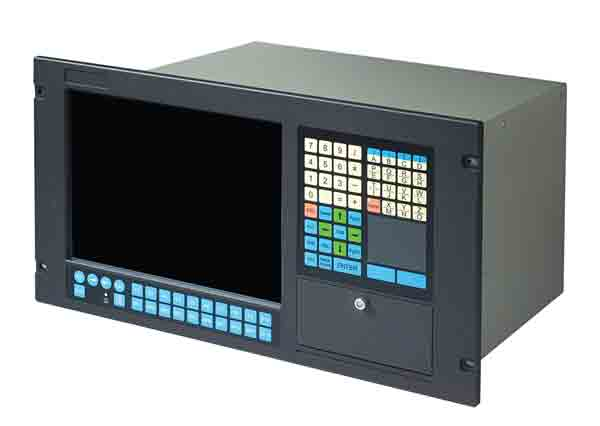

The AWS-8129H PC-based industrial workstation features a 12.1-in. color TFT LCD display.
Included are three ISA, four PCI, and two PICMG slots, offering flexibility for application requirements. There are two membrane keypads. One has 47 operating keys including 26 alpha characters; the second one has 10 function keys, 10 programmable macro function keys, reset, and power on/off. There are six OSD keys (display on/off, brightness up/down, menu select, exit) and a touchpad with two mouse buttons. The operating system supports Windows 95, 98, 2000, and XP. The AWS-8129H is RoHS compliant and offers a front panel design for NEMA4/IP65 applications.

Advantech Corp., eAutomation Group

www.eAutomationPro.com/us800.205.7940
