Servo-controlled Part Positioner

Sept. 9, 2007

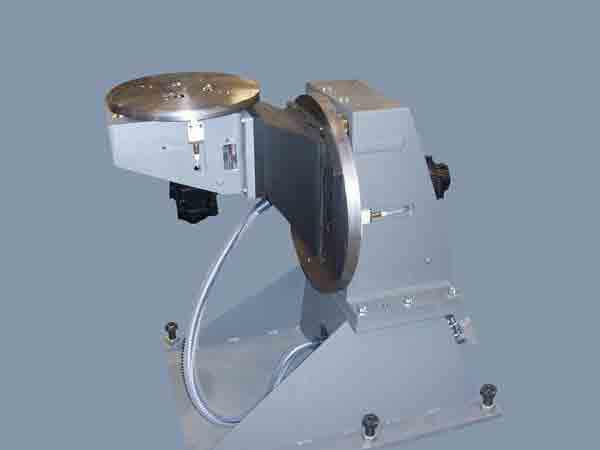

The MH1600-500TR positioner is comprised of two standard headstock modules combined to provide highly flexible, AC servo-controlled tilt/rotate part positioning using two rotational axes of motion.
Positioner motion can be coordinated with the robot motion to keep weld joints oriented in an ideal posture for welding and to allow circumferential welds to be performed in a single pass. Designed to accommodate small- to medium-sized parts, the MH1500-450TR positioner features a 500kg (1,102.5lb) payload. Tilt axis speed is 10.8rpm and rotate axis speed is 3.56rpm.  Motoman Inc.www.motoman.com937.847.6200
