Efficient HMI Configuration Software

July 9, 2007
Telemecanique brand Vijeo Designer£ V4.5 human-machine interface (HMI) configuration software is designed to offer a simple, efficient way to exchange data with reliable traceability.

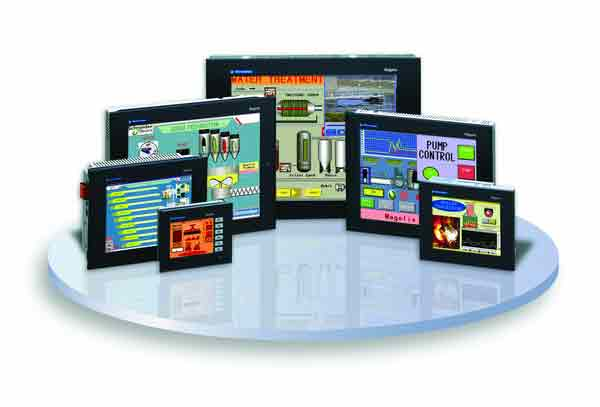

The software now offers more communication design options since its open architecture adapts to all of the vendor’s Magelis XBT-GT touchscreen platforms, as well as Magelis Smart and Compact iPCs. The software conveniently manages design from the smallest 3.8-inch terminals to 15-inch HMI terminals. Vijeo Designer V4.5 software features a Web Gate remote access function, offering users the flexibility to securely manage their HMI applications via a simple Internet navigator using Ethernet architecture. Users can exchange up to 300 variables between eight Magelis XBT-GT touch screens and iPC terminals using an Ethernet connection. The software now also can be used with the protocols Modbus Plus TCP/IP and Uni-Telway£. Vijeo Designer V4.5 software provides multimedia functions, allowing users to view real-time or recorded video.

Schneider Electric
