    Definite Purpose Contactors

    May 9, 2007

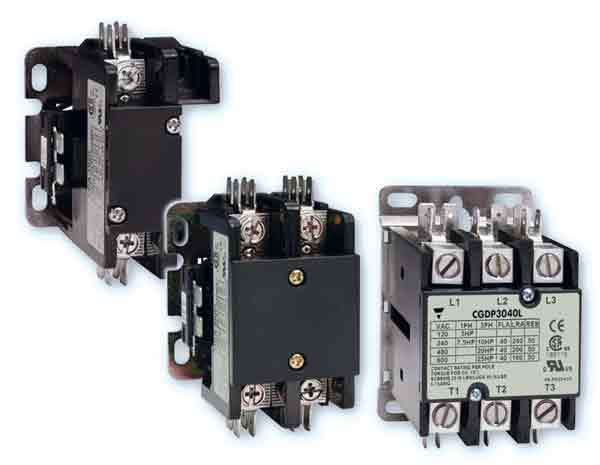

    The CGDP Series of Definite Purpose Contactors are rated for up to 50 Amps for resistive loads and are available in one pole, one pole plus shunt, two pole and three pole configurations
    Aw 4466 0705np18
    Contactors are UL and CSA recognized, meet ARI 780 ratings and are RoHS compliant. Standard features include 24, 120, 208/240, 277, 480 and 575VAC 50/60Hz coils. Switching of 20, 25, 30, 40 Amp FLA (30, 35, 40, 50 Amp resistive) loads is possible at up to 600VAC. Connection of the contactors is achieved via multiple 0.25-in. fast-on terminals, which are standard on control and load terminals. Standard lugs and box lugs are optional for load terminals. List prices range from $14 to $58.

    Carlo Gavazzi
    Automation Components

    www.GavazziOnline.com847.465.6100
