    Adapt Serial Devices To Ethernet

    Aug. 1, 2006
    The FL-Com Server is designed to adapt RS-485 serial devices to industrial Ethernet networks. The FL-Com Server RS-485 interface offers easy integration of virtually any RS-485 device onto industrial 10/100BASE-T(X) networks, says the vendor, thereby allowing access to any device with a serial port.

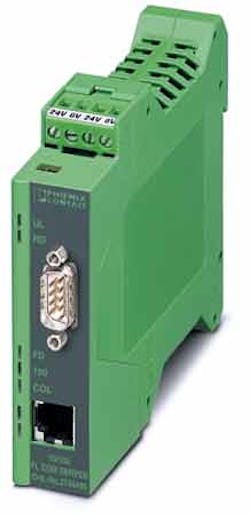

    Aw 4918 0608iernp06

    The rugged FL-Com Server provides users with industrial features such as: wide-range DC power supply, DIN-rail mounting, three-way isolation, surge protection and redundant power supply capabilities. Measuring just 22.5mm wide, the server supports all common protocols, including TCP/IP, PPP, 3964R and the various Modbus protocols. Set-up is done via Web-based browser. The Com Server is equipped with COM Redirector and Factory Manager software, which allow Ethernet access to serial devices on the network as if they were connected to local COM ports on a PC.
