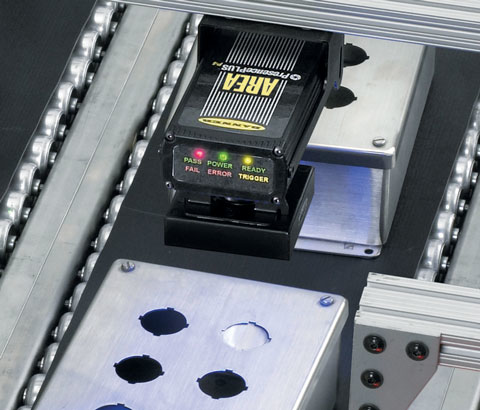

Billed as the most advanced sensing solution for inspecting the presence and shape of defined areas, Presence PLUS P4 AREA vision sensors can perform these multiple analyses functions simultaneously at speeds up to 10,000 parts per minute.
The P4 AREA 1.3 offers 1280 by 1024 pixel resolution for advanced high-resolution inspections. The P4 AREA and P4 AREA 1.3 are available with two lens positions—in-line and right-angle. Both versions measure 66.8mm wide; the in-line model is 136.1mm long and the right-angle model is 124.5mm long. The units’ three bi-color LED indicators clearly show unit status during setup and operation. The sensors operator on 10 to 30VDC. Including gray scale and BLOB (Binary Large Object) analysis, the P4 AREA starts at $995, while the 1.3 megapixel models start at $1,995.
