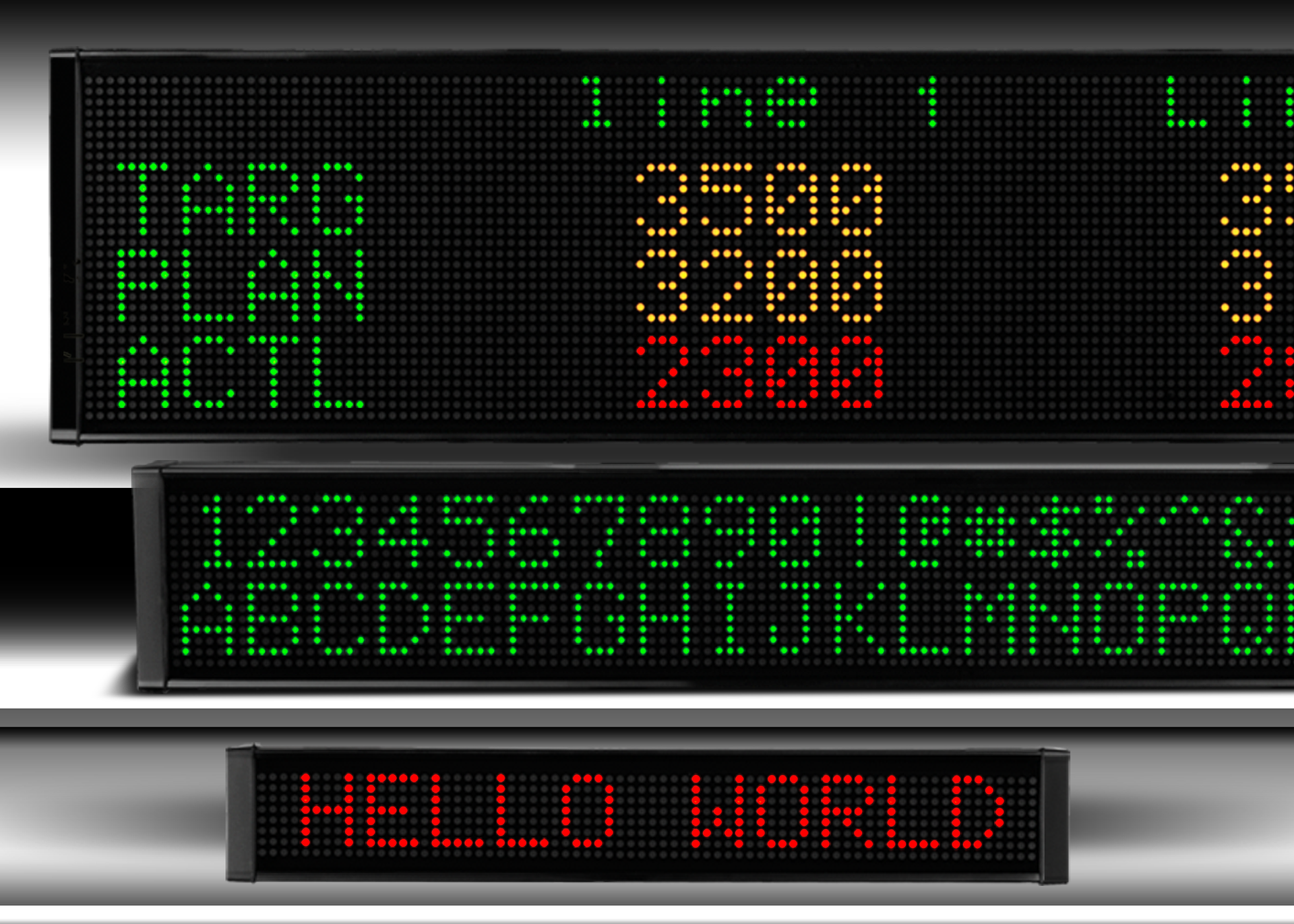

Embedded data support allows real-time production data from the controller to be contained within messages. The displays support embedded string and numeric variables, as well as blinking text and scrolling (left, right, up, down) messages. They feature tri-color LEDs (red, green, amber) and are available in six models with one, two or four lines of 12 or 24 characters. They feature heavy-duty extruded aluminum housings with durable polycarbonate end caps and a smoked polycarbonate lens cover. Access covers with seal-tight cable glands offer reliable, easy installation of power and communication wiring. The displays are NEMA 4 and NEMA 12 (indoor only) rated and will withstand washdown conditions. Displays have 140° viewing angles, can be mounted in any horizontal position (wall, ceiling, cabinet), and can be wired for 100-240 VAC or 24 VDC power. All message displays are fitted with one RS-232, one RS-485, and one Ethernet port, and can be connected to a PLC, PC, or any device capable of serial ASCII master, Modbus RTU, or Modbus TCP communications.
>>For more information on this product, click here
Automation Direct
www.automationdirect.com
800.633.0405
