MPL: Embedded Computer Family

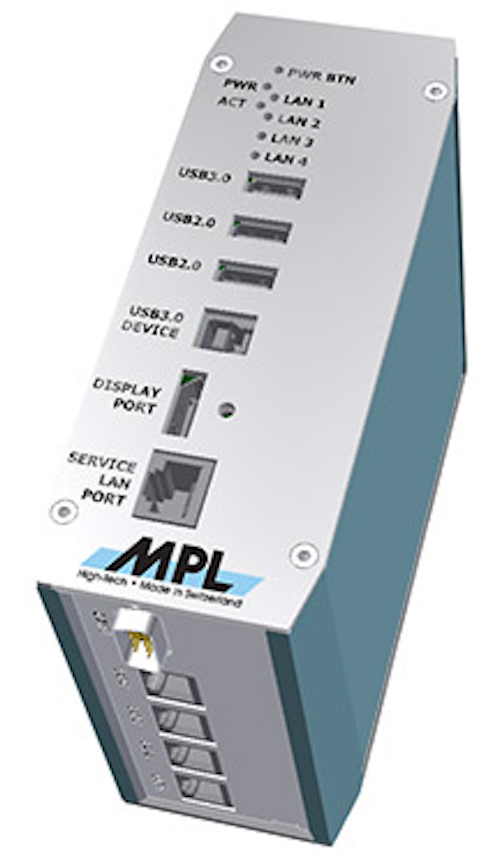

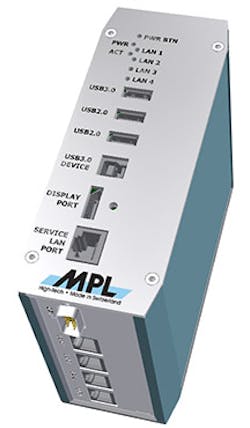

The New Generation CEC is a highly integrated, compact and robust embedded computer system, based on the Intel Atom (Bay Trail) Processor E3800 Series with single, dual, and quad core CPUs.

Aug 9th, 2014

Aw 26375 1408np Mpl

With a case size of 62x162x118 mm (2.44 x 2.44 x 4.65 inches), the unit operates from -40 to 85 ºC (-40 to 185 ºF) without a fan and draws 8 to 18 W from an 8 to 36 V supply. A configurable power management provides sleep currents down to 100µA, supporting wake capability (Ignition/RI). Various wake sources (Ignition signal, RS-232 Ring indicator, or Wake On LAN), mass storage choices of mSATA, 2.5-inch HD, or soldered down eMMC. The main board has up to five RJ45 Gigabit Ethernet ports, three USB 2.0, one USB 3.0, display port, one RS-232 interface, and a mPCIe/mSATA full size slot. An additional RS-232 or RS-422/RS-485 can be added. The main board is also available in a depopulated version. The RJ45 connectors can be replaced with M12 connectors or SFP cages. An expansion board interface a board interface offers two PCIe, two HSIC, two UART, SATA, SDIO, LPC and I2C. This allows a maximum on customization for any I/O Boards, allows to extend the system with additional interfaces. For example: GPIOs, additional serial ports, Gigabit Fiber, CAN , miniPCIe slots even PCI/104-Express port.

>>For more information on this product, click here

MPL
www.mpl.ch
