IP69K Food-Grade HMI

May 12, 2016

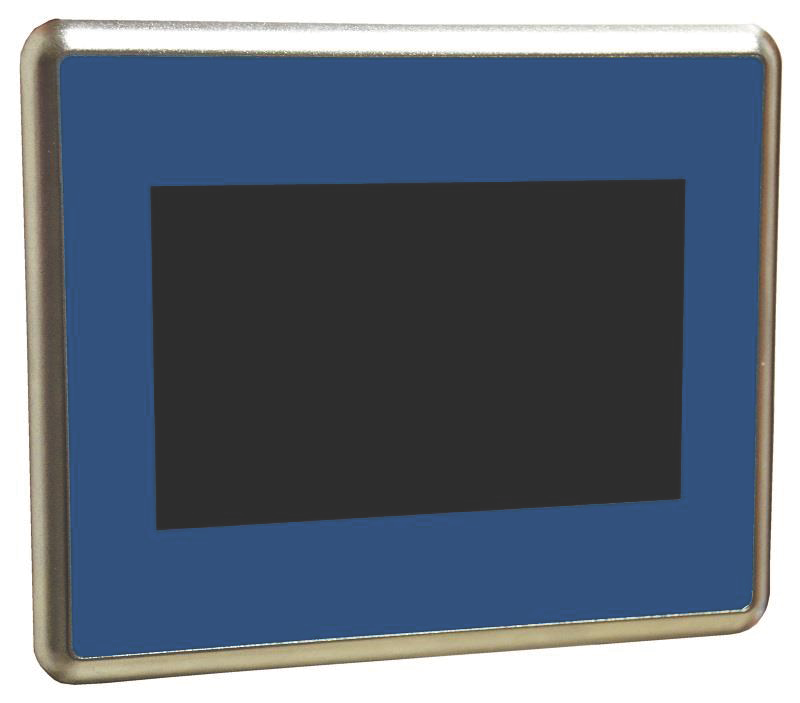

Exor's eTOP507MFB is designed for the food and beverage industry with a stainless steel bezel.

The HMI does not need to be shielded from high temperature, high pressure cleaning; the IP69K PCAP Touch "Glove Compatible" HMI has a 316 SS bezel and polyester front foil resistant to high pressure, high temperature, harsh chemical wash-down. There is no need to cover the HMI panel during equipment cleaning; no need for manual, less effective secondary cleaning procedures! And most certainly, no more HMI failures! Reduced labor; and reduced risk of product contamination from manual/secondary cleaning procedures. Features include a stainless steel bezel 316/1.440l with an IP69K rating, food-compatible gasket and food standard sealing compliant with FDA 21 CFR 177.2006. The unit's 7-inch TFT display 800x480 64K colors features a PCAP touchscreen that can be operated with gloves in food areas. The HMNI features a high-performance 1 GHz ARM CPU with 256 MB Flash, two host interface v.2.0, SD card slot, two Ethernet ports with integrated switch and an extended temperature range of 20 +60 °C).

>>For more information on this product, click here
Electromate
905.850.7447
www.electromate.com
