Automation Direct, Inc: Multi-Function Digital Timer/Counter/Tachometers

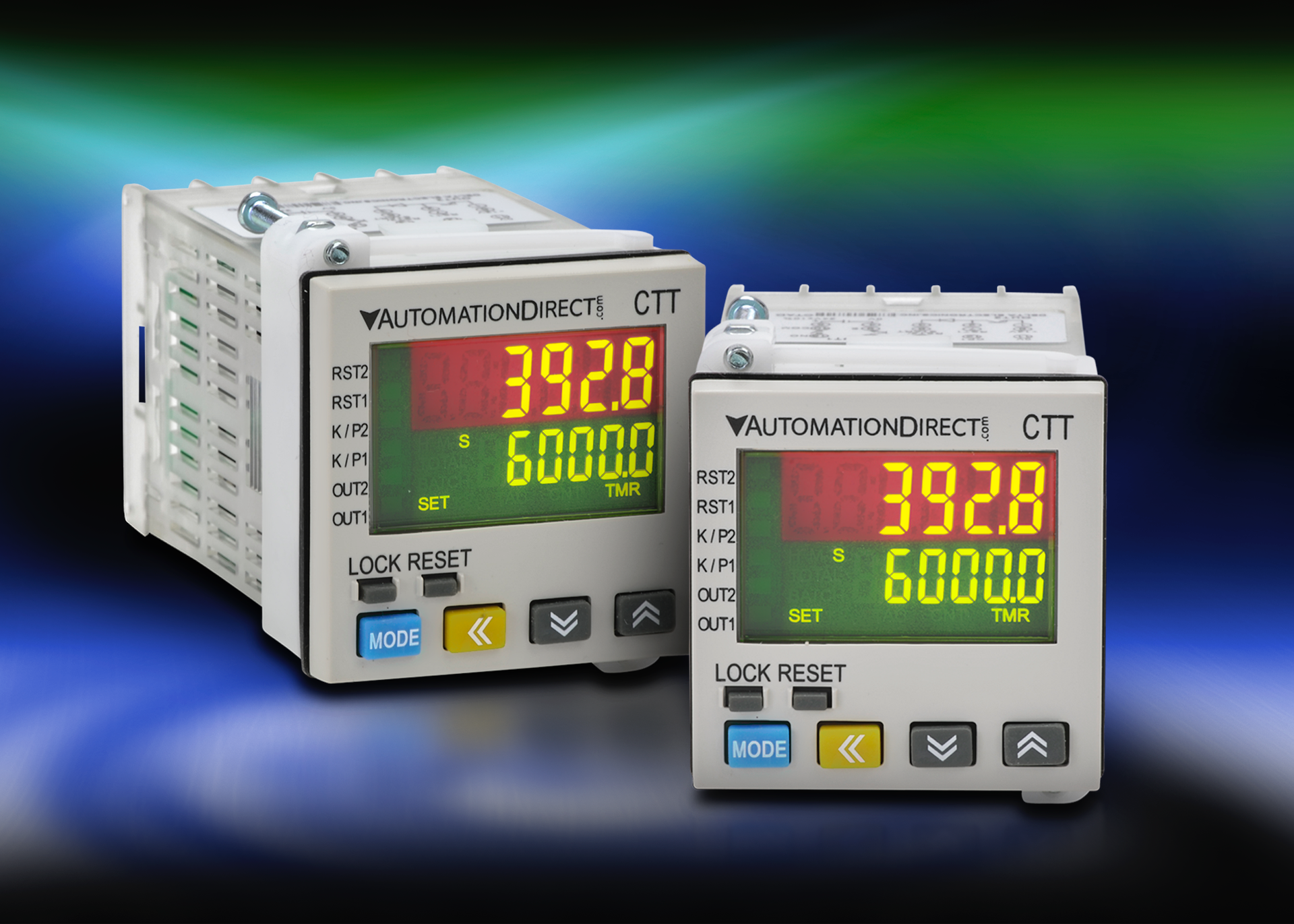

The CTT series multi-function devices are easily configured for use as a digital counter, timer, combination timer/counter, or tachometer. The units offer selectable counting speeds up to 10,000 cycles per second. Available in standard 1/16 DIN size, the series comes in 24 VDC and 100-240 VAC powered versions. Multiple transistor and relay output versions are available. The devices feature double-line, six-digit, two-color LCD displays for counter, timer, or tachometer present values, setting values and menu parameters during setup. Parameters can be easily set using externally accessible DIP switches or the lockable keypad. Additional individual indicators are provided for inputs, outputs and functions. The units are equipped with two outputs; Output 1 is a single-pole single-throw relay and NPN transistor that operate concurrently. Output 2 can be ordered as either a single-pole double-throw relay, or NPN transistor.
