Rockwell Automation: EtherNet/IP Distributed I/O with CIP Sync

I/O modules feature Sequence of Events (SOE) and Scheduled Output capability to improve response time and overall machine performance.
Related To:
June 25, 2012
Aw 11017 1206np Rockwell

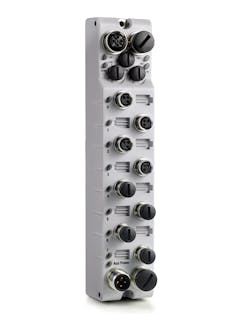

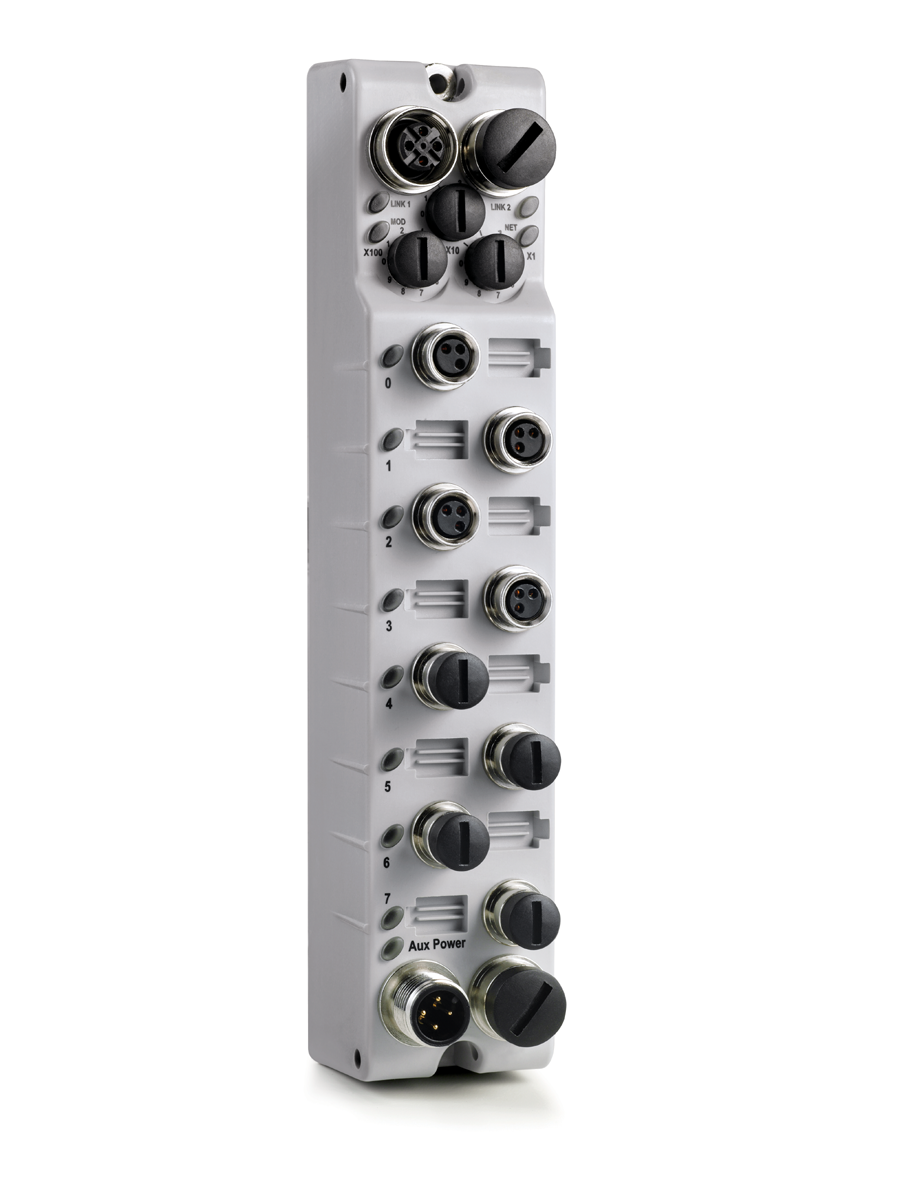

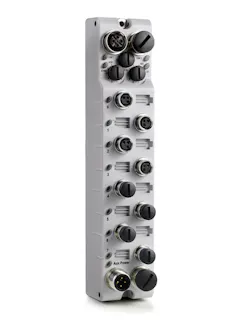

Newly added to the company's ArmorBlock I/O line, the 1732E Slim ArmorBlock digital Scheduled Output module can schedule an output in 1 µs increments and trigger multiple outputs at high-speed intervals of 100 µs. This is useful in motion applications where higher resolution of outputs is required for more precise control and synchronization. By using CIP Sync distributed time synchronization, the input module can register any axis position within the system accurately with a single time-stamp input. It reduces wiring costs and installation time, compared with the conventional method. The new I/O blocks include the 1732E-8CFGM8R, 1732E-IB8M8SOER and 1732E-OB8M8SR modules. Each ArmorBlock module is equipped with dual-port Ethernet for linear topology, as well as dual-port auxiliary power connectors for daisy chain of 24 VDC power.

>>For more information on this product, click here
