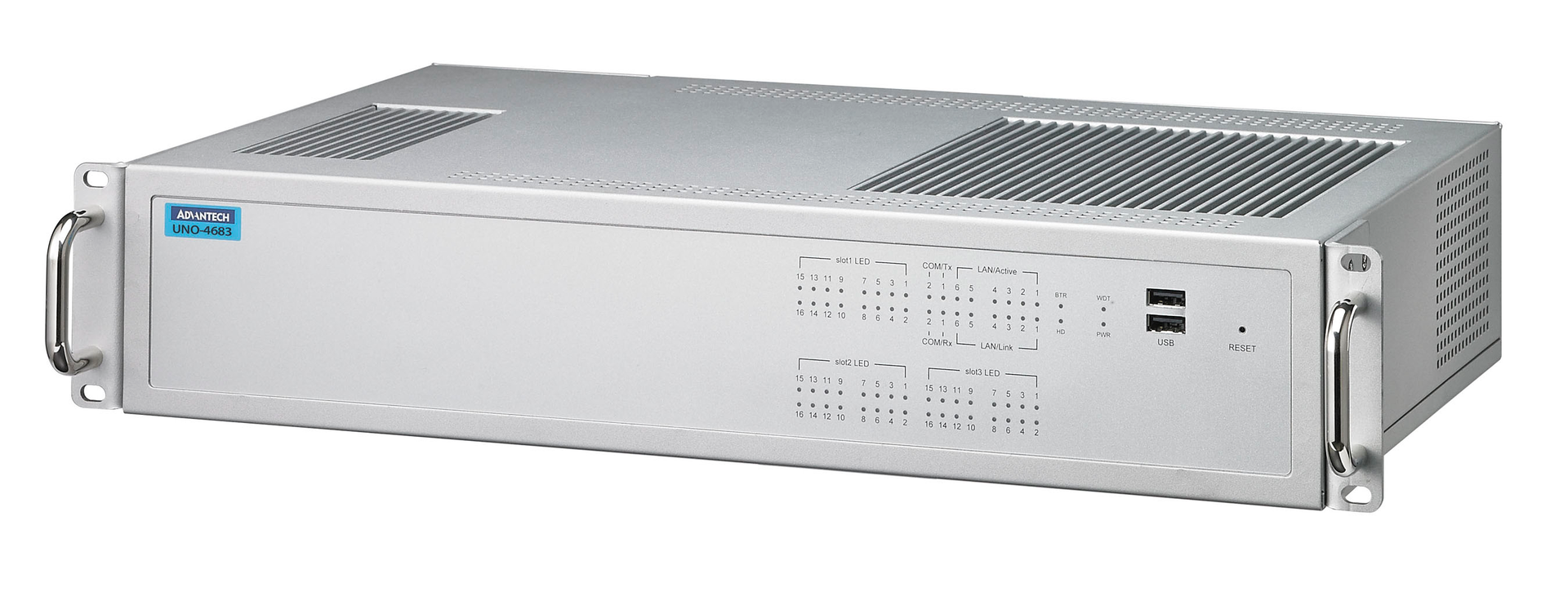

Certified with IEC 61850-3 and IEEE 1613 standards, the computer module features an Intel Core i7 processor, compact 2U rack-mount form factor, dual power input (100 to 240 VAC and 106 to 250 VDC). It comes with a wide range of communication interfaces and flexible expansion capabilities, including six Ethernet ports with LAN redundant teaming functionality, six USB ports, and two RS-232/422/485 isolated serial ports. Three configurable domain I/O expansion slots are also open for users to select the UNOP I/O modules to meet application needs. The I/O modules are also compliant with the IEC 61850-3 and IEEE 1613 standards; the UNOP-1624D is a four-port isolated RS-232/422/485 card with IRIG B support, whilst the UNOP-1514C comes with four-port Fiber Optic LAN support. There are also two eight-port RS-232/422/485 I/O modules: the UNO-1618D without port-to-port isolation and the UNO-1628D with port-to-port isolation.
>>For more information on this product, click here
Advantech Corporation, Industrial Automation Group
www.advantech.com/ea
800.800.6889
